Project Description

UT 27

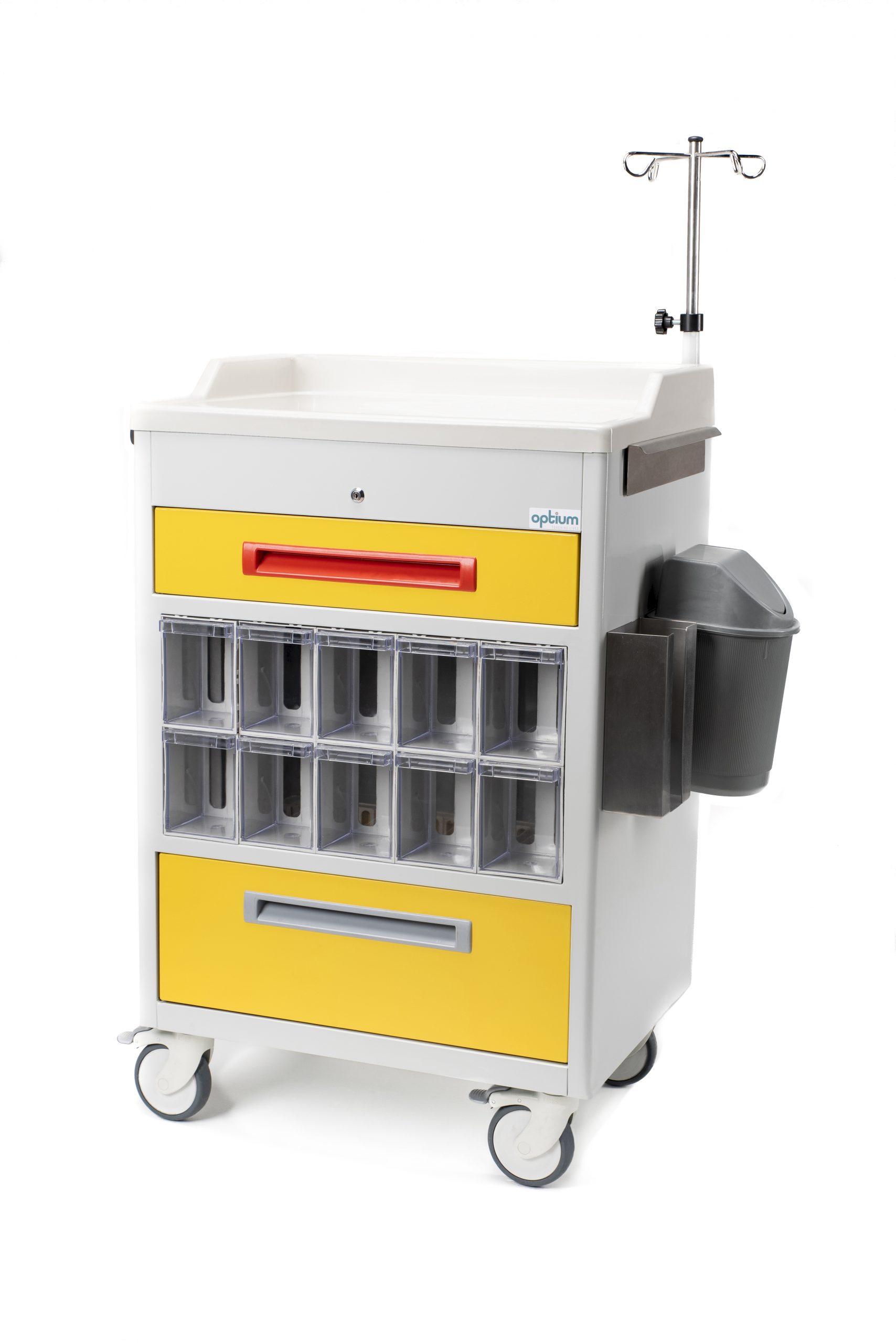

DRESSING AND PROCEDURE TROLLEY

Construction:Electrostatic powder painted metal frame and ABS
Body Material:Side walls and drawers electrostatic powered painted steel sheet
Working top and removable drawers trays ABS material
Knocking Mechanism:Central locking system with key
Top Surface:ABS work top with raised edges on three sides to prevent falling
Drawers:1 medium with 120 mm height + 1 big 220 mm height
Optional: 3 mediums with 120 mm height
Built in drawer handles with different colours
Drawer Dimensions:1 pcs medium drawer: 355 x 555 x 100 mm
1 pcs big drawer:  355 x 555 x 200 m
Inner dimensions
Inside Drawers:Made by ABS material, easy detachable trays
Each drawer totally 2 separators for 4 compartments

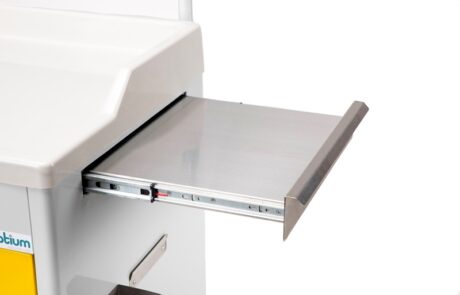

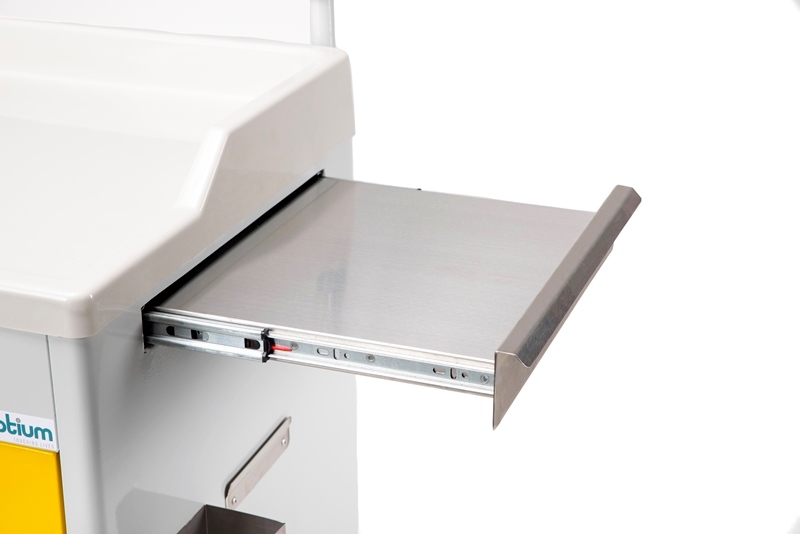

Pull-put Working Tray:High quality and rigid stainless steel working tray for medical staff
304 grade steel tray with railing system
295 x 350 mm dimension

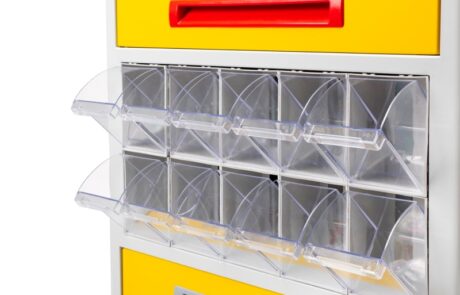

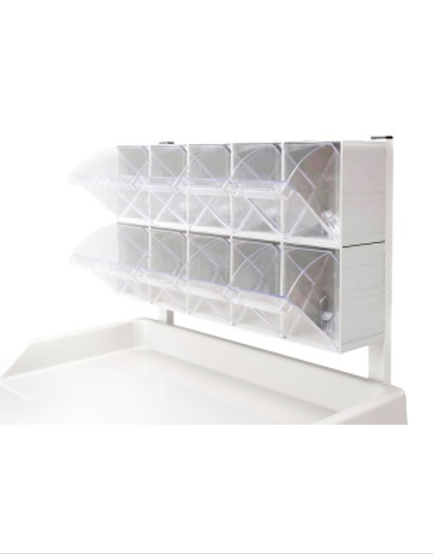

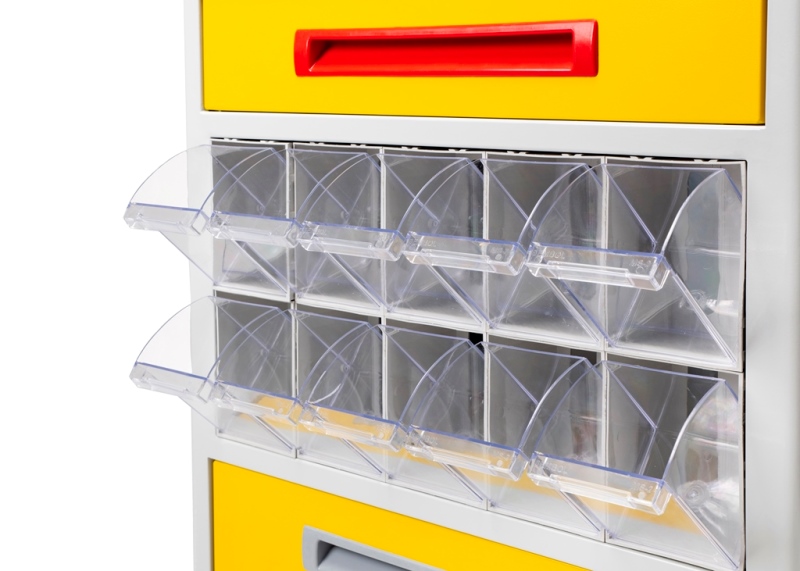

Medicine Boxes:10 pcs of, tilt-out, and transparent medicine boxes
Castors:2 pcs lockable, 2 pcs without lock, 125 mm
360° swivel castors, made of non-marking material
Waste Bin:Detachable bin, made by PE material

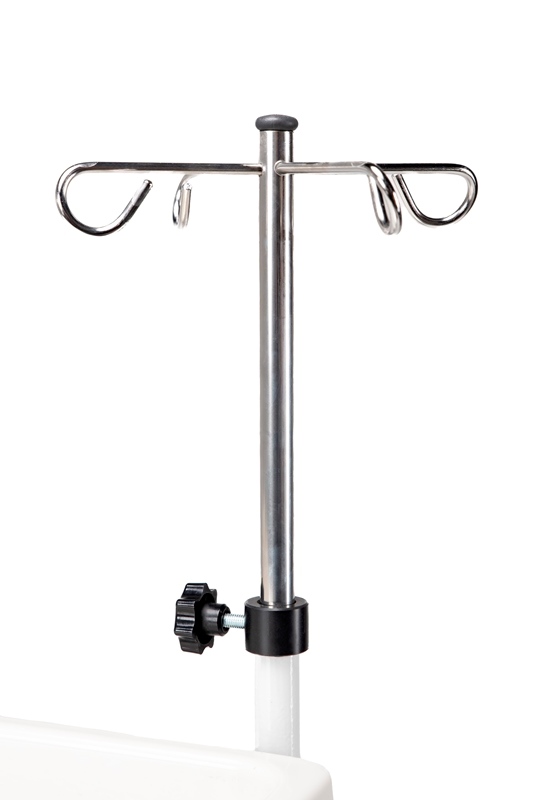

IV Hook:Stainless steel, 4 hooks, IV pole, height adjustable
Label Holder:Label holder on each drawer for easy identification
TECHNICAL DETAILS
Body Dimensions: 700×550 mm
Height: 1150 mm
Castor Diameter: 125 mm

OPTIONAL ACCESSORIES

Sharp Box
Glove Box Holder
Plastic Bumpers
10 pcs. Medicine Box
