ME 40

MANUAL PATIENT CARE BED, 4 CRANKS

  • Easy to use, comfortable and stylish design

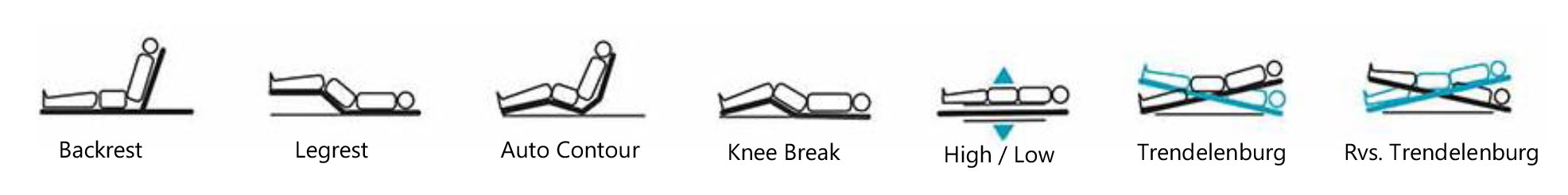

  • Backrest, height, and legrest adjustment by crank mechanism
  • Trendelenburg and reverse trendelenburg adjustment by crank mechanism
  • Easy store hand-cranks
  • Collapsible full length side rails
  • Removable (PP) head & foot boards
  • Fowler and Vascular positions
  • Perforated metal lying surface
  • Electrostatic powder coated metal frame
  • Footrest adjustment by ratchet
  • Height adjustable IV pole
  • Swivel castors; 2 with brake
  • Protective plastic bumpers on four corners
  • Central lockable castors (optional)

Other Manual bed and manual patient care bed products

TECHNICAL DETAILS
Overall Length: 212 cm
Overall Width: 104 cm
Height Range: 46-76 cm
Trendelenburg: 0°-10°
Reverse Trendelenburg: 0°-10°
Backrest Angle: 0°-70°
Legrest Angle: 0°-30°
Castor Diameter: 125 mm
Safe Working Load: 250 kg

ACCESSORIES

Oxygen Cylinder Holder

Lifting Pole

Monitor & Defibrillator Shelf

Patient Chart & File Holder

ABS Mattress Platform

COLOR CHART

P01
P02
P03
P04
P05
P06
P07
P08
