Project Description

FM 02

VISCOELASTIC MATTRESS

TECHNICAL DETAILS
Standard Size: 195x85x14 cm
Material: Grey PU Foam + Viscoelastic Material
Density: 32 kg/m3 + 65 kg/m3 (±2 kg/m3)
Cleaning: Autoclavable
Area of Usage: Hospital Ward Rooms, Emergency Rooms, ICU Rooms
Mattress Weight: 14 kg
Warranty: 2 Years

Introduction

FM 02 Viscoelastic Mattress provides comfort to user. The special filling material in its top surface provides the weight to distribute on the mattress by surrounding its user. The dense filling material in the bottom surface increases the lying comfort by providing adequate support to the user. The air passages in the tube design provide air circulation and prevent heat accumulation.

  • Accords to all bedsteads through a special CNC cutting,
  • Air passages reduce perspiration,
  • Comfort is provided to the user by the regional design,
  • One-piece design creates an acute alternative to mattress with classical parts,
  • Provides with anti-bacterial, water proof, and breathable cover.

Content

FM 02 Viscoelastic Mattress is produced in accordance with hospital ward rooms, emergency room and being adjustable to all bedsteads. It is provided with the anti-bacterial cover. This cover has complementary features with the mattress.

  • An important feature in a mattress to prevent the patient against decubitus ulcer is having air passages and by the help of these passages, reducing perspiration. At this point cover assists mattress with being breathable.
  • Second point is for the cover being impermeable fluids but as mentioned before allow air to pass. So cover does not obstruct air passages situation.

Product Overview

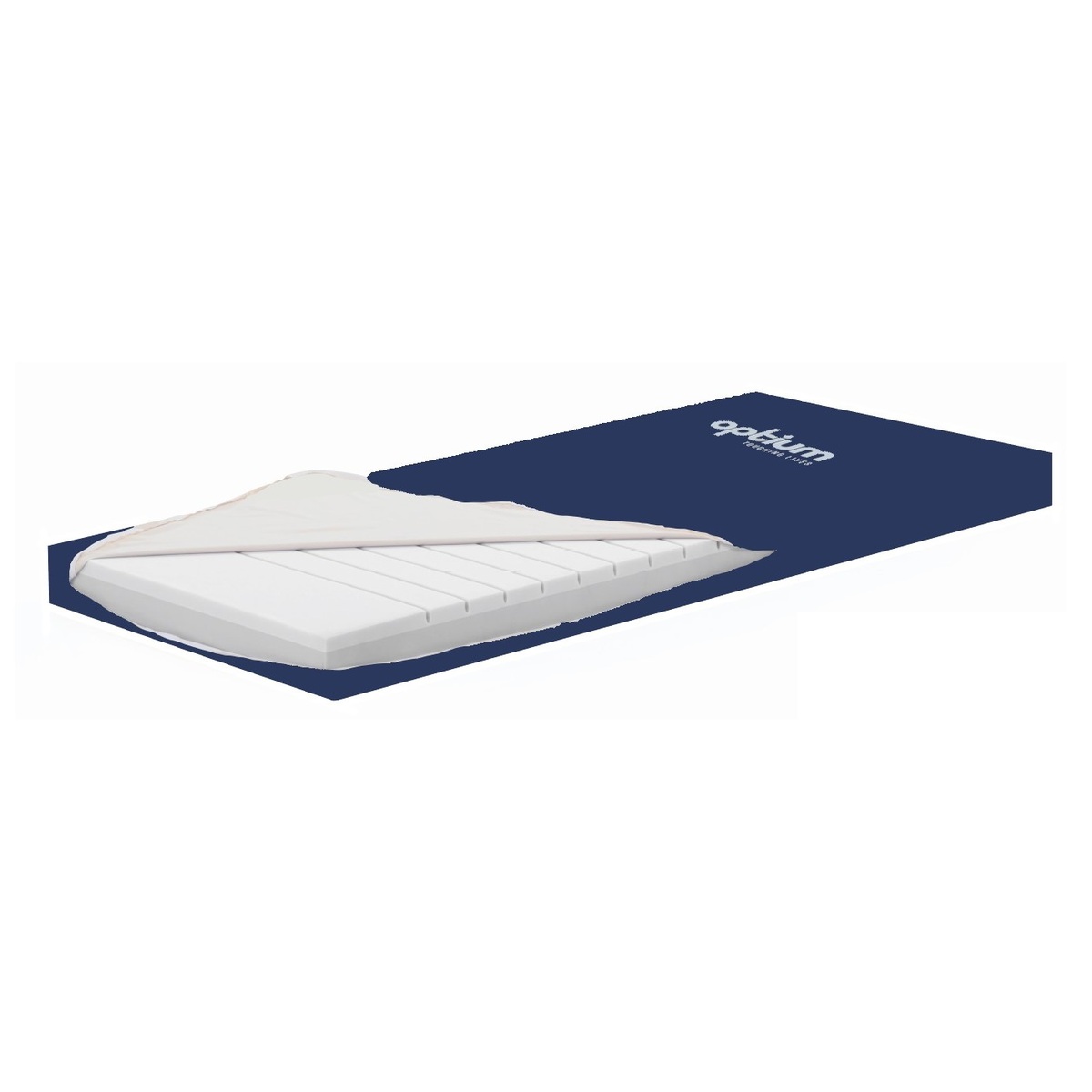

FM 02 Viscoelastic Mattress is available for using on one side. This mattress is produced in one layer viscoelastic layer and another side has the CNC cutting. The special CNC cutting also provides to minimize pressure to contact directly on patient body.

Its design helps the patient to move on easily.

Optimal thickness is 14cm for hospital examination rooms, ICU rooms, and ward rooms; size is 195×85 cm which is suitable for all Optium Beds; upon request other size can be manufactured.

It is also autoclavable when required to sterilize.

MATTRESS COVER

  • Long service life
  • Flame resistant
  • Durable
  • Urine and blood resistance
  • Scratch-proof
  • Dirt resistant
  • Antibacterial & antifugal
  • Water vapour resistant
  • Resitant to conventional desinfectants
TECHNICAL CARACTERISTICS
Fabric100% Polyester85 g/m2
Coating100% PU115 g/m2
Total200 g/m2 (± 10 g/m2)
Tensile StrengthNormEN ISO 1421
 Warp> 20 daN / 5cm
 Weft> 10 daN / 5cm
ElongationNormEN ISO 1421
 Warp> 55%
 Weft> 120%
Hydrostatic HeadNormEN 20811
 > 2000 mm
Hydrolysis According Jungle TestAfter 3 weeks : no loss of quality
IS TREATED
Fire ResitantBS 7175Crib 5Centexbel
Anti FungiResistantSanitized – ASTM G 21-96
ATCC #6538 (Staphylococcus aureus)
ATCC #4352 (Klebsiella pheumoniae)
ATCC #6538 (Escherichia Coli)
Water Vapour PermeabilityAccording
Standard:
ASTM G 96*66
800 g/m2- 24h at 32°C
Shrinkage at washing at 95oCMax 5<2.00%
Resistance to disinfectantsDenaturated AlcoholOKISO 5077
 Fugaten SprayOK90% Alcohol+90%Ether
 Ethanol 70% (608g/l)
 OtherOlien 7 (g/l) 5 min. Contact
 H.A.C Reocid, Dettoll, Lyorthol
Cleaning Instruction
