Project Description
TI 41

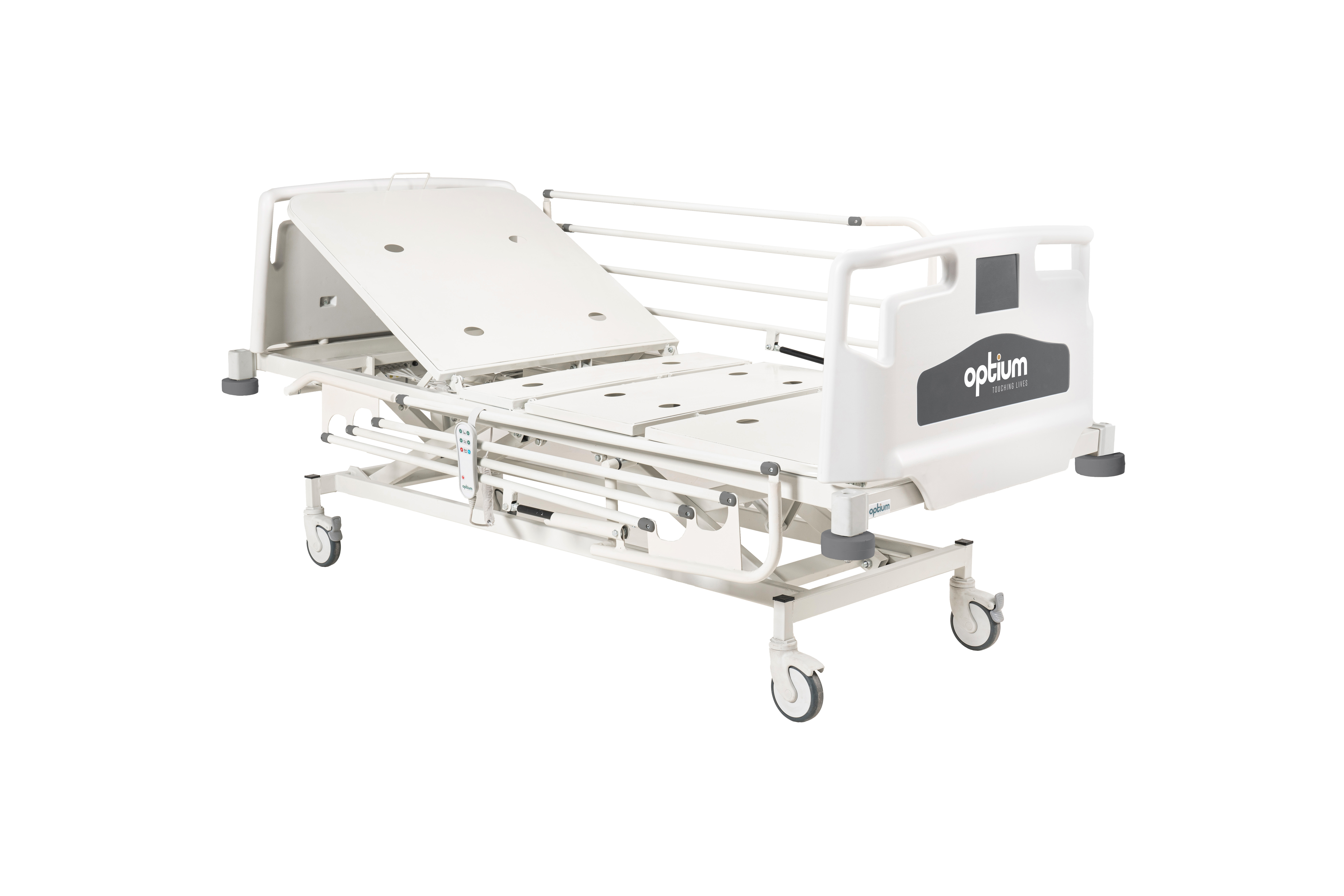

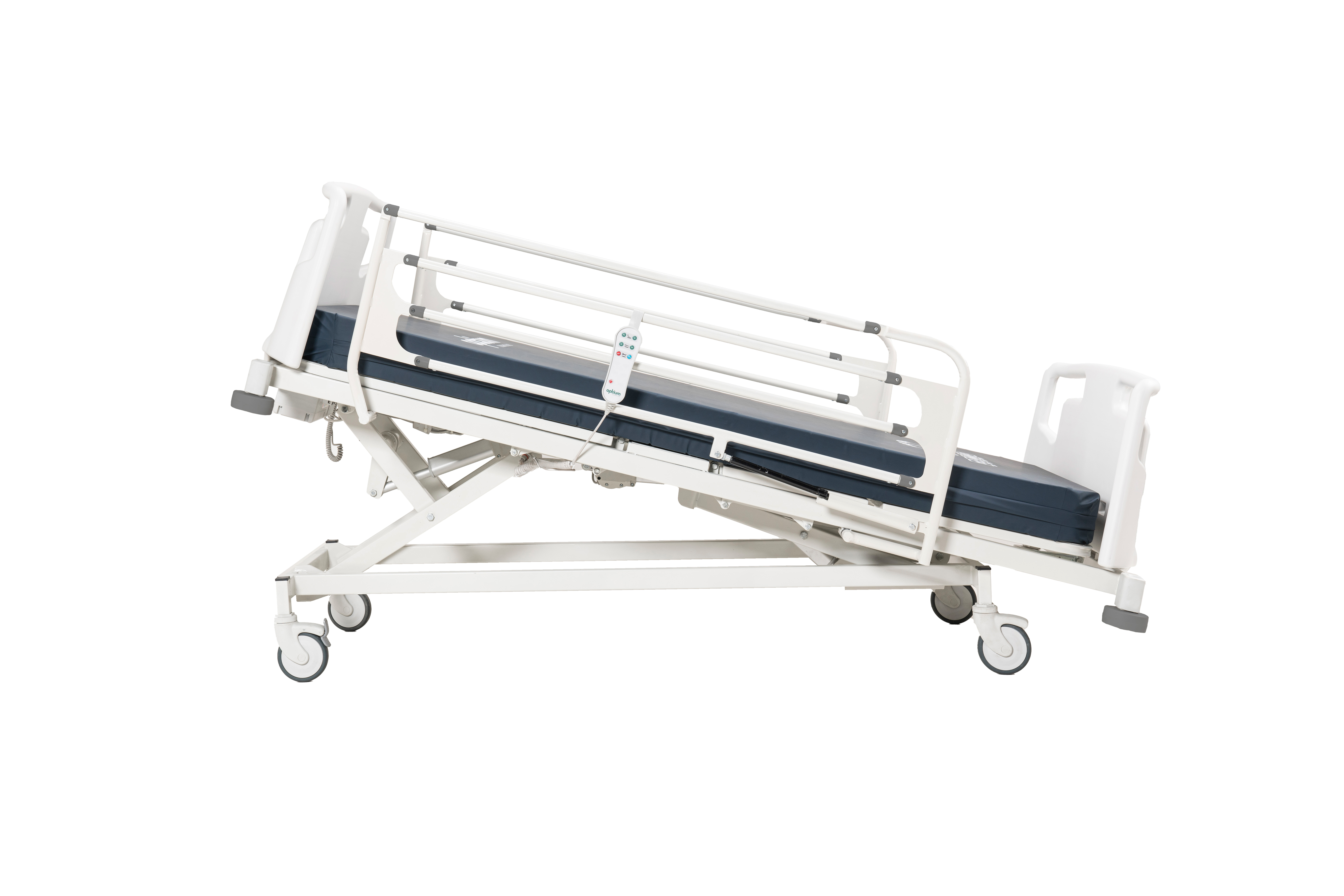

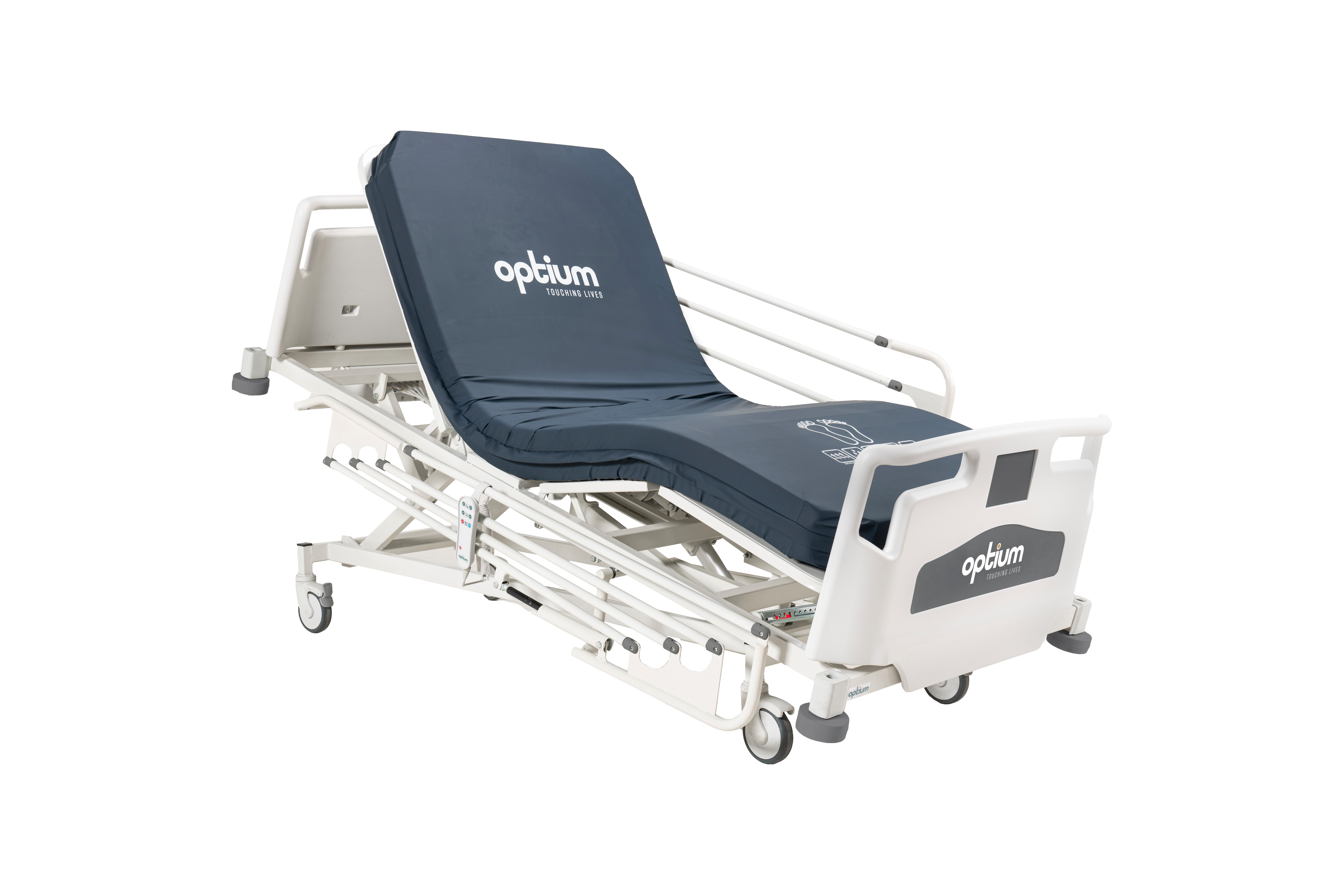

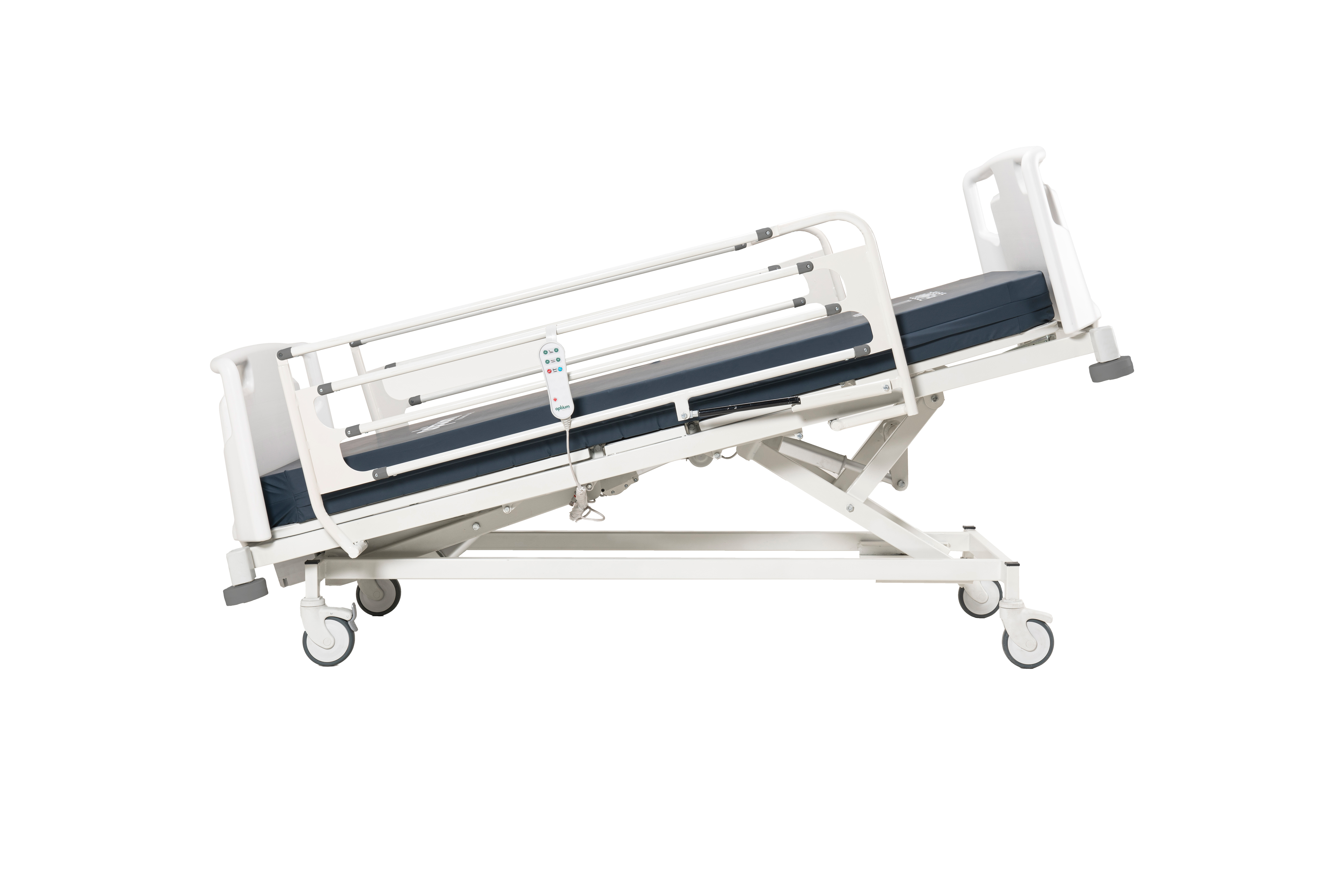

ELECTRONIC ICU AND PATIENT BED, 4 MOTORS
- Electrical operated backrest, height and legrest adjustment

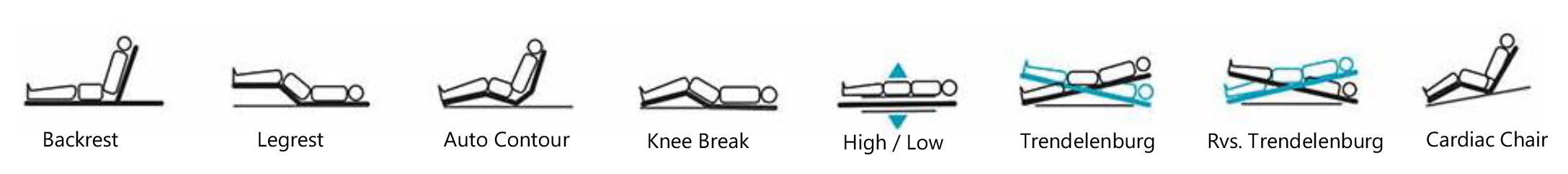

- Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
- Patient handset
- Footrest adjustment by ratchet
- Auto Regression system on backrest
- Auto contour
- Four strips foldable steel side rails assisted by gas spring
- Epoxy painted steel mattress platform
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Detachable IV pole
- Protective plastic crash bumpers on four corners
- Diagonal lockable castors
- Activation key at remote control to prevent any undesired positions
- Urine bag holder
- IPX6 standard electronic system
- Removable ABS mattress platform (Optional)
Other Electronic Hospital Bed and Titanium Series hospital bed
TECHNICAL DETAILS | ||
---|---|---|
Overall Length: 215 cm | Castor Diameter: 12,5 cm | |
Overall Width: 104 cm | Under Bed Clearance: 12,5 cm | |
Height Range: 37-80 cm | Product Weight: 115 kg | |
Trendelenburg : 0°-16° | Safe Working Load: 250 kg | |
Reverse Trendelenburg: 0°-16° | Power In: 1.5A max. At 230V AC 50-60 Hz | |
Backrest Angle: 0°-70° | Electrical Shock Protection: Class I, Type B | |
Legrest Angle: 0°-35° | Liquid Ingress Protection: IP 66 |

ACCESSORIES

Central Brake Castors 150 mm

Foot-end Nurse Control Panel

Rechargeable Battery Backup

X-Ray Translucent Backrest with Cassette Holder

Dual Sided Manual CPR at Backrest

ABS Mattress Platform

Stationary Headboard

Bed Extension

Urine Bag Basket

Orthopedic Traction System

Lifting Pole

Monitor & Defibrillator Shelf

Oxygen Cylinder Holder

Nurse Panel Shelf
COLOR CHART

P01

P02

P03

P04

P05

P06

P07
