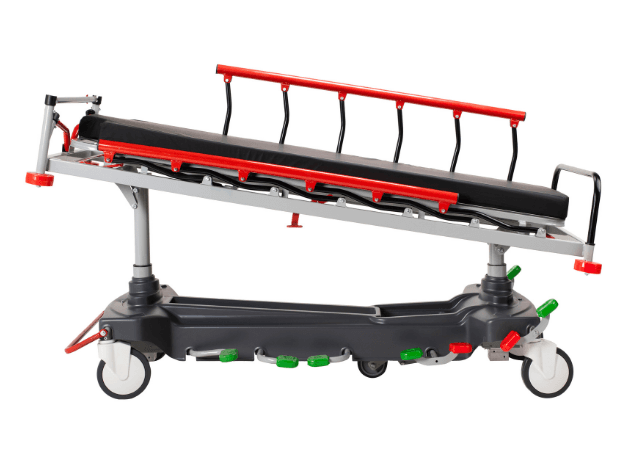

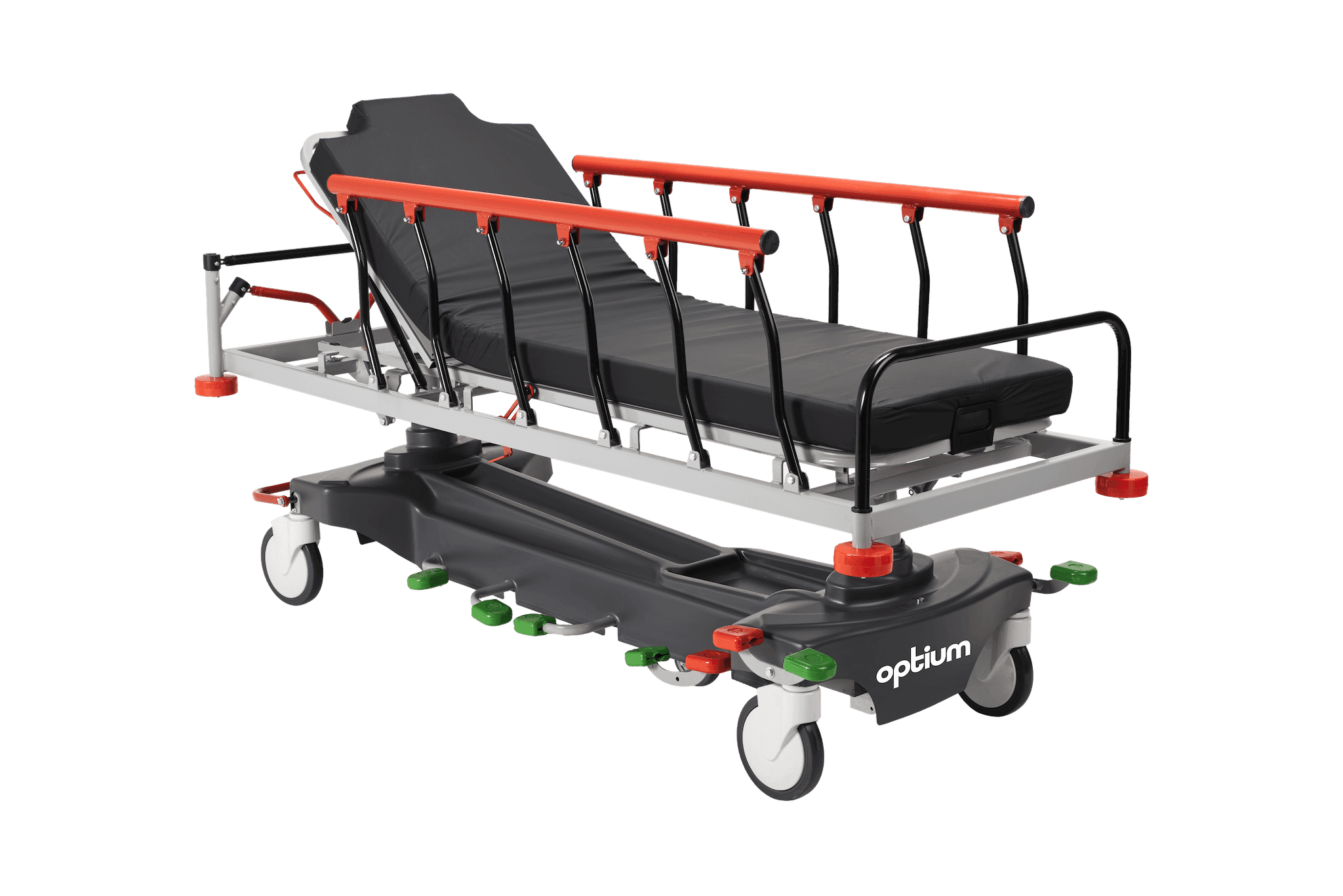

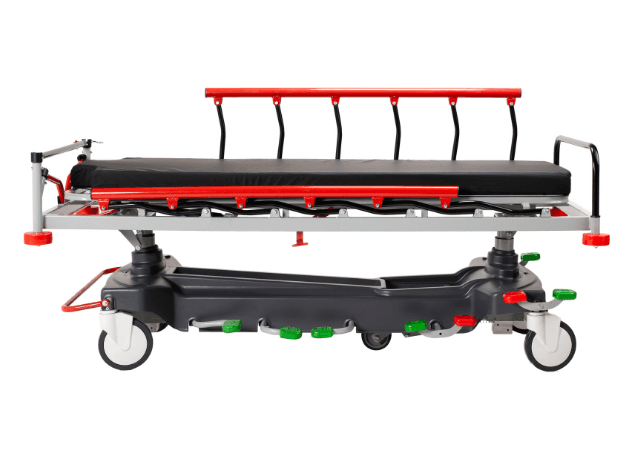

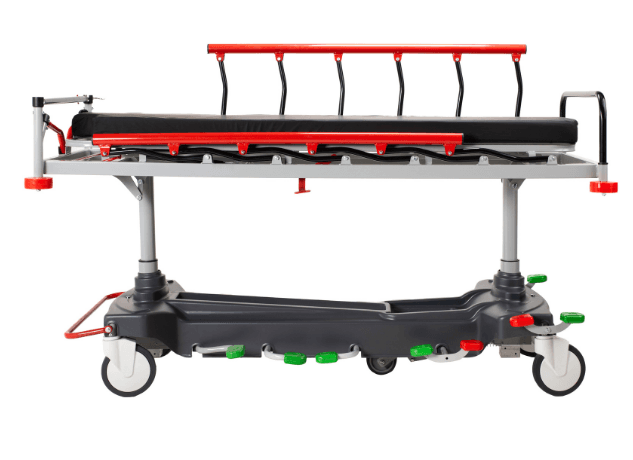

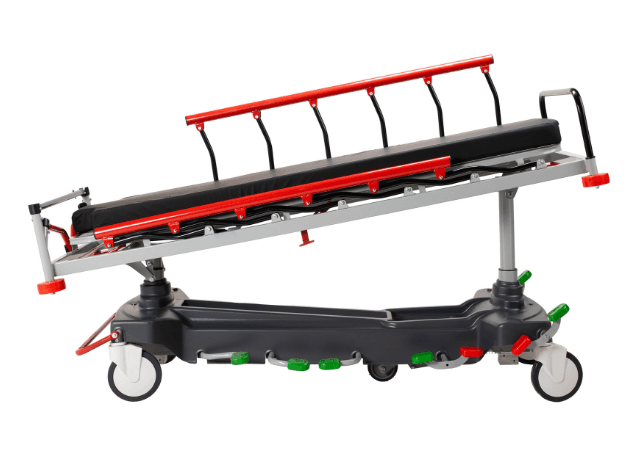

CAMILLASAVERON
Camilla Funcional de Emergencia
- • Hydraulic height adjustment supported by columns
- • Height adjustment pedals on both sides
- • Backrest adjustment assisted by gas spring
- • Trendelenburg and Reverse Trendelenburg positions
- • 2-section mattress platform (4-section mattress platform optional)
- • X-ray translucent HPL mattress platform
- • X-ray cassette holder sliding under the full mattress platform
- • Foam mattress with removable, anti-static, fire-retardant and waterproof cover
- • Mattress thickness: 10 cm
- • Swing-away (collapsible) side rails with locking mechanism
- • Foldable pushing bars
- • Shockproof protection on all four sides made of soft plastic material
- • ABS plastic covered lower chassis
- • Electrostatic powder (epoxy) coated main frame
- • Central brake pedals on foot castors
- • Anti-static and anti-tracing 360° swivel castors
- • 200 mm castors with central braking system and steering control
- • 5th wheel for easy maneuverability
- • Height adjustable IV pole
- • Oxygen tank holder integrated on sub-frame
- • Urine bag hanger hooks
- • Patient safety belt (optional)
- • Monitor shelf (optional)
- • Viscoelastic mattress (optional)
| Length: | 215 cm |
|---|---|
| Width: | 85 cm |
| Backrest Angle: | 0°-70° |
| TR/RTR Angle: | 0°-12° |
| Height Range (without mattress): | 64-92 cm |
| Castor Diameter: | 200 mm |
| Mattress Surface: | 60 x 190 cm |
| Mattress Thickness: | 10 cm |
| Safe Working Load Capacity: | 250 kg |
