BRANCARDSST 62

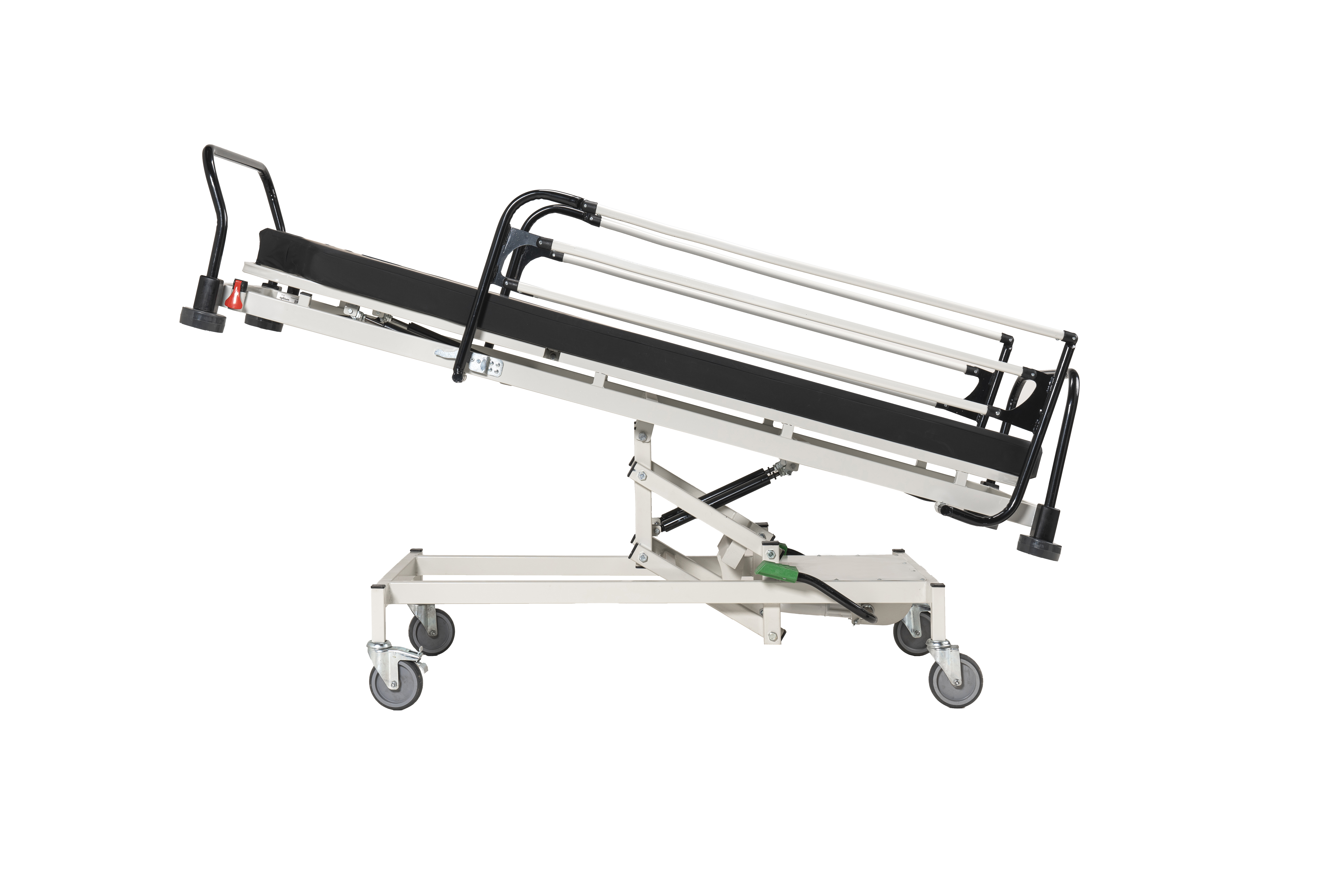

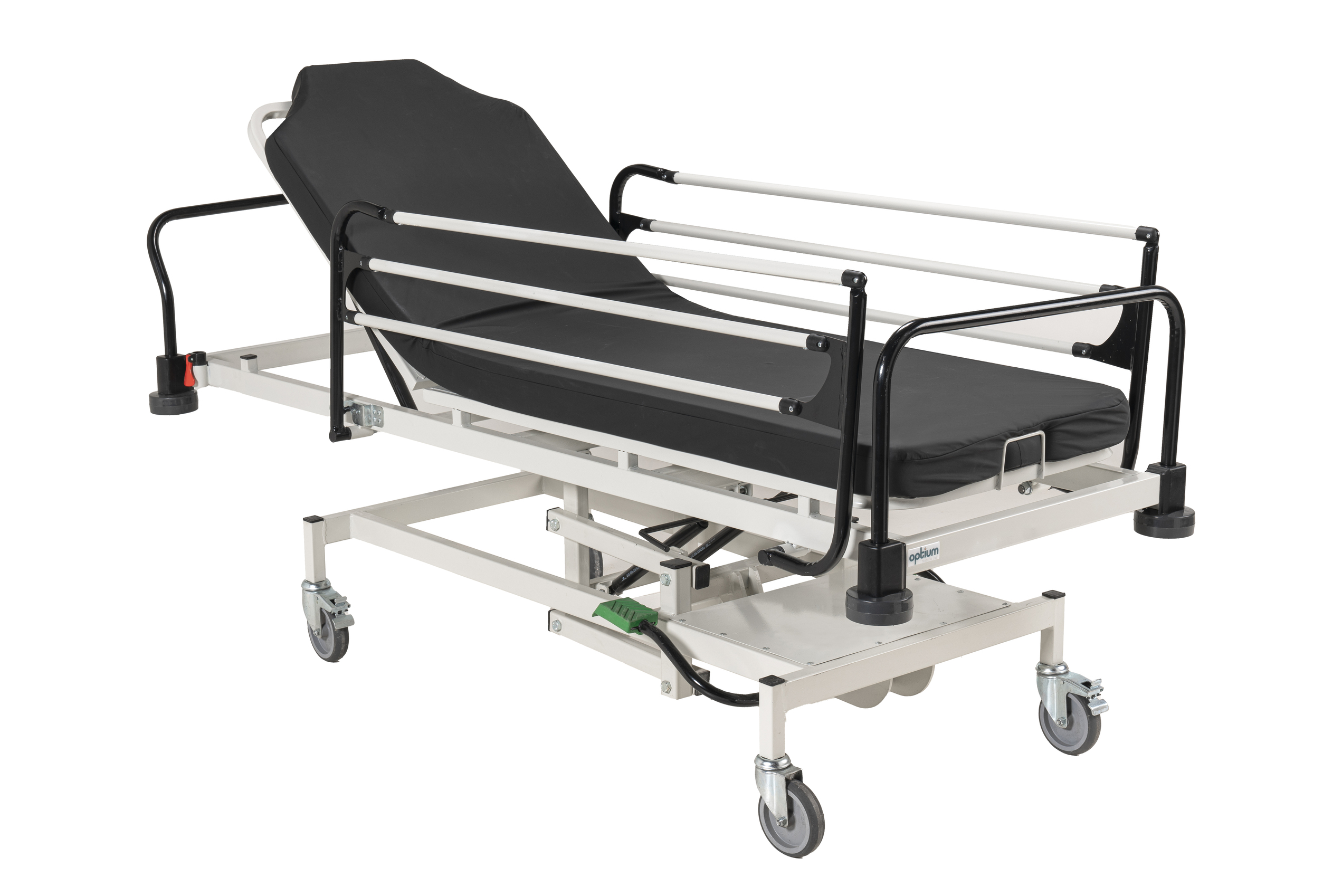

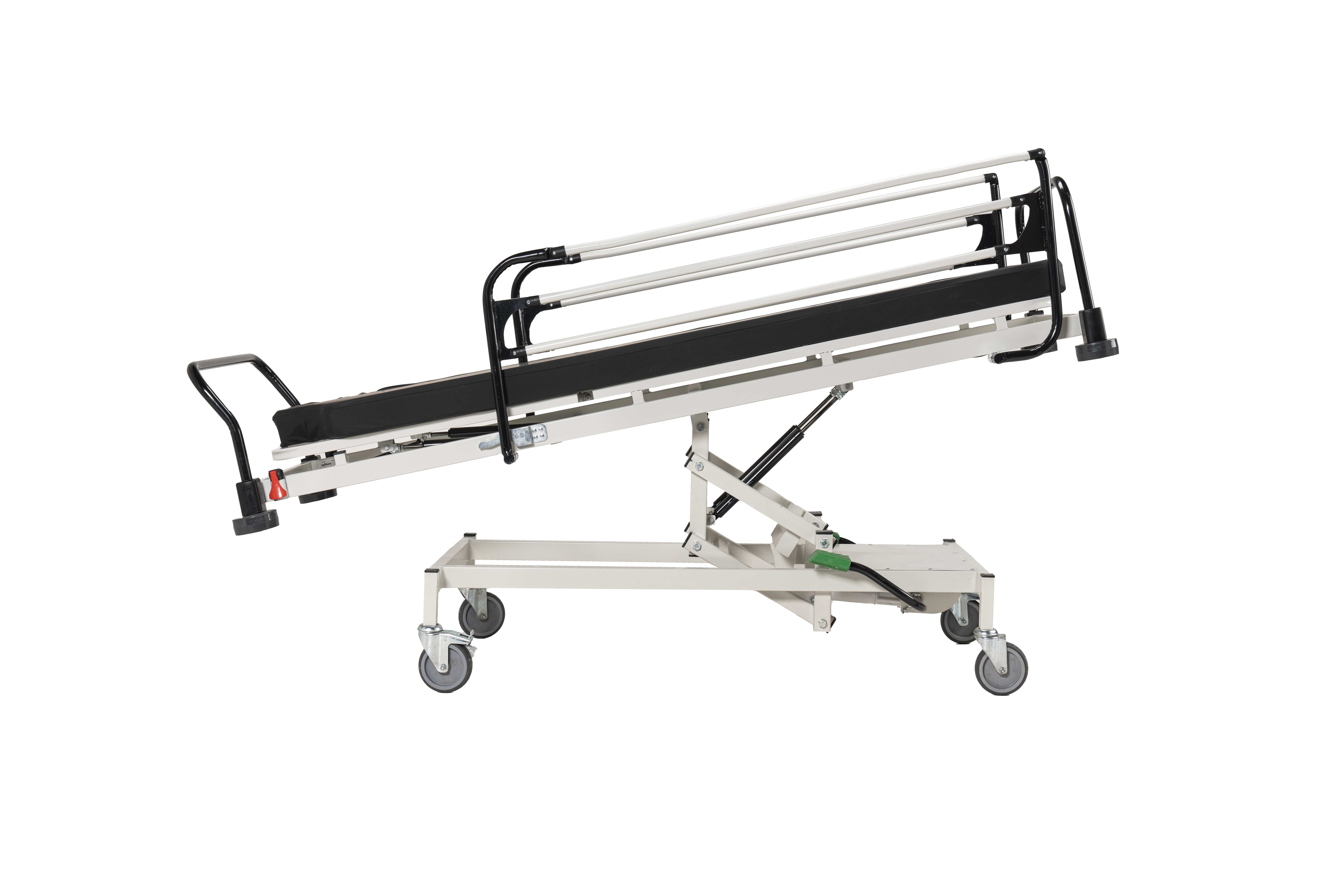

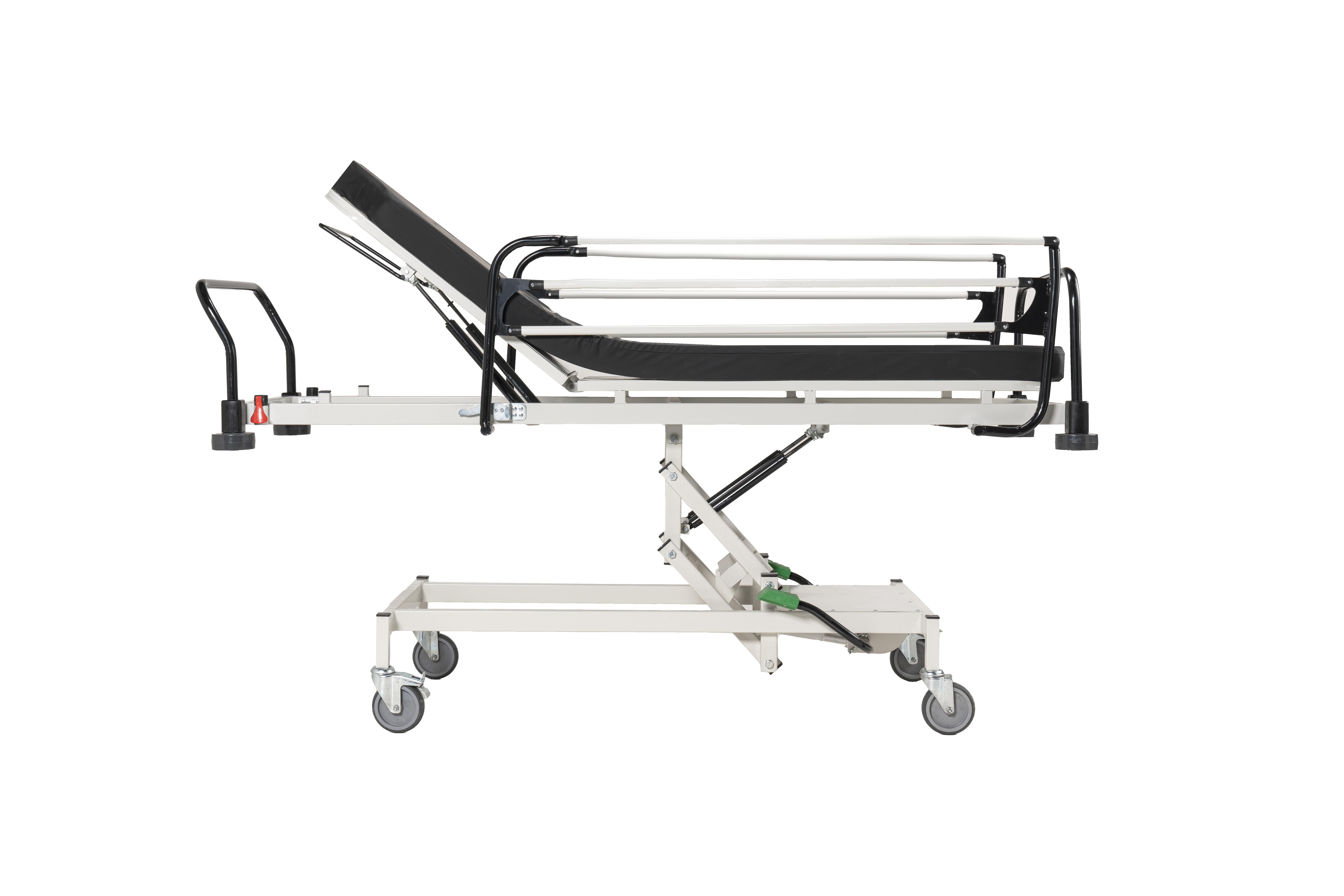

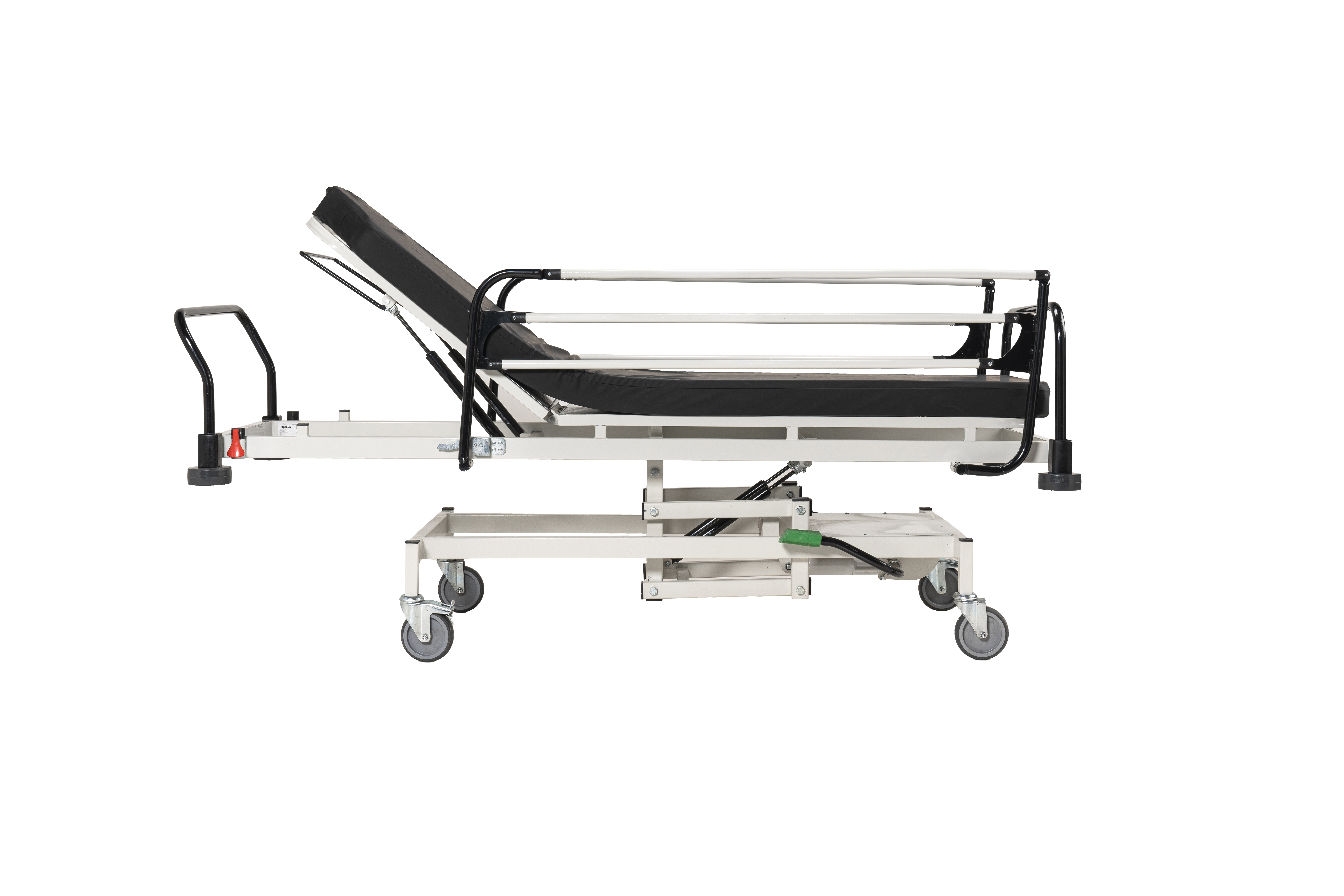

Brancard Patient Hydraulique
- • Hydraulic height adjustment by dual sided pedals
- • Manual backrest adjustment by gas spring
- • 2 sections frame
- • Epoxy powder panged steel main construction
- • Synthetic leather coated mattress
- • Steel sheet mattress platform
- • Swing away (collapsible) side rails with locking mechanism
- • Undercarriage storage for equipment
- • Stainless Steel IV pole
- • Protective bumpers
- • Central locking mechanism, 150 mm (optional)
- • Central locking mechanism, 200 mm (optional)
- • Trendelenburg & Reverse Trendelenburg by gas spring (optional)
- • Patient safety belt (optional)
- • X-ray Cassette holder at backrest (optional)
- • Central locking mechanism (optional)
- • Oxygen Holder (optional)
| Width: | 78 cm |
|---|---|
| Length: | 207 cm |
| Backrest Angle: | 0°-70° |
| Trendelenburg Angle (optional): | 0°-12° |
| Reverse Trendelenburg Angle (optional): | 0°-12° |
| Sleep Surface Dimensions: | 60 x 190 cm |
| Height Range: | 62- 87 cm |
| Mattress Thickness | 8 cm |
| Castor diameter: | 15 cm |
| Safe Working Load: | 220 kg |
