SM 07

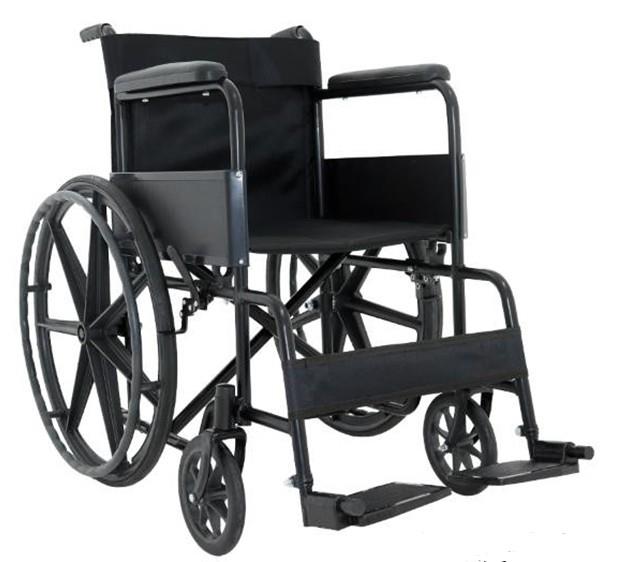

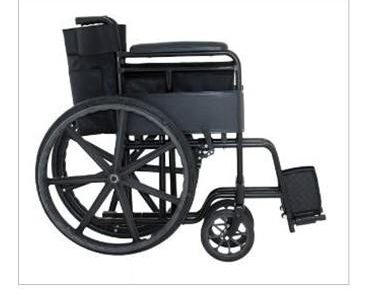

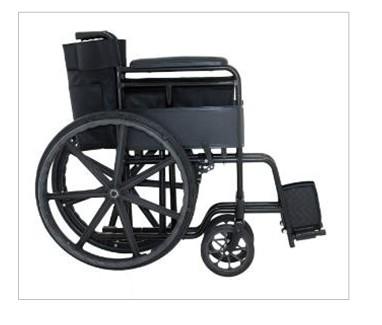

STANDARD MANUAL WHEELCHAIR

  • Foldable chassis
  • Chrome plated structure
  • Embossed vinyl upholstery
  • Padded armrests provide additional comfort
  • Fixed foot and arm holder
  • 20cm front wheel diameter
  • 60cm rear wheel diameter
  • Equipped with brake
  • Foldable footrest
  • IV pole
TECHNICAL DETAILS
Seat Width: 44 cm
Seat Depth: 42 cm
Seat Height: 48 cm
Backrest Height: 40 cm
Armrest Height: 25 cm
External Width: 67 cm
External Height: 94 cm
External Length: 108 cm
Item Weight: 17 kg
Safe Working Load: 150 kg

UNIVERSAL TELESCOPING I.V. POLE

Description

The Universal Telescoping Wheelchair IV Pole features
dual loops and is compatible with most manual wheelchairs adjustable to 100cm when extended.

Specifications

  • Product Weight: 2kg
  • Product Length: 100cm when expanded
  • Product Width: 7.5cm
  • Warranty: Limited Lifetime
ACCESSORIESDescription
OPT1101Telescoping IV Pole, W/C, 1/bx, BX
OPT1103Wheelchair Cane/Crutch Holder,1/ea, EA
OPT1102Seat Belt, Velcro Close,1/ea, EA
OPT1104Wheel Lock Extension ,1/ea, EA
OPT1105Limb Support, Right,1/cs, CS
OPT1106Limb Support,Left,1/cs, CS
OPT1107Oxygen Tank Holder for W/C,1/cs, CS
PARTSDescription
OPT2070Detachable Arm Large,1/ea, EA
OPT2100Detachable Arm Regular,1/ea, EA
OPT2061Footrest Set, Cruiser , 1pr/set, EA
OPT2193Footplate & HeelLoop, Right, , EA
OPT2197Caster with 8mm Bearings, 1/ea, EA
OPT2072Caster Axle Bolt, 1/ea, EA
OPT2069Rear Axle Bolt Fix Arm Chair,1/ea, EA
OPT2063Universal WheelChair ArmPad,1/ea, EA
OPT2067Slide Tube w/bushing,,1/ea, EA
OPT2062Axle Cap 8mm, 1ea, EA
