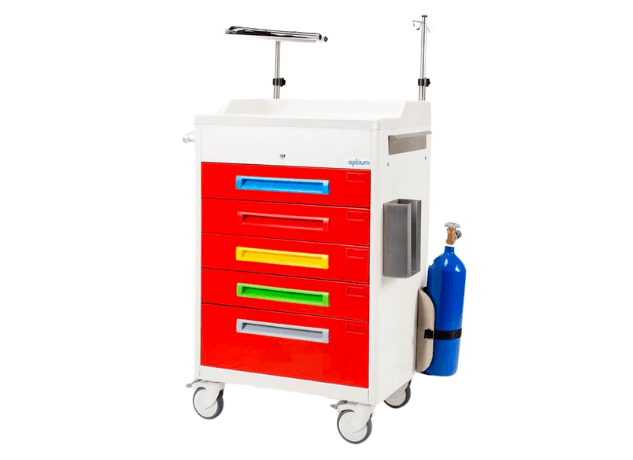

Chariot d’Urgence
CHARIOTS MÉDICAUXUT 26
Chariot d’Urgence
- Construction: Electrostatic powder painted metal frame and ABS
- Body Material: Side walls and drawers electrostatic powered painted steel sheet
- Working top and removable drawers trays ABS material
- Knocking Mechanism: Central locking system with key
- Optional: Breakaway seal system
- Top Surface: ABS work top with raised edges on three sides to prevent falling
- Drawers: 4 medium with 120 mm height + 1 big 220 mm height, total 5 drawers.
- Optional: 2 medium with 120 mm height + 2 big 220 mm height, total 4 drawers.

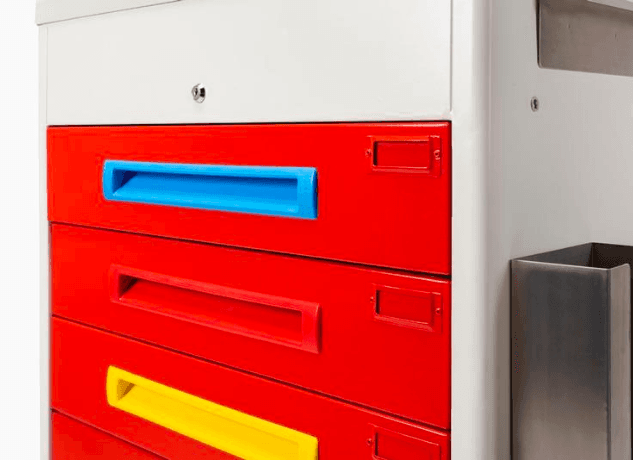

- Built in drawer handles with different colours
- Drawer Dimensions: 4 pcs medium drawers : 355 x 555 x 100 mm
- 1 pcs big drawer: 355 x 555 x 200 mm
- Inner dimensions
- Inside Drawers: Made by ABS material, easy detachable trays
- Each drawer totally 2 separators for 4 compartments

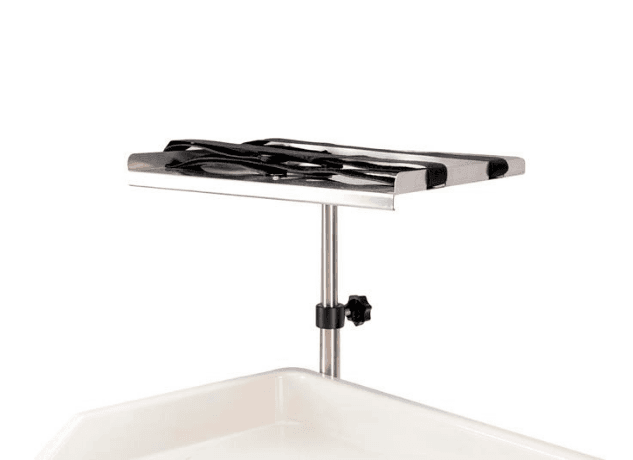

- Pull-put Working Tray: High quality and rigid stainless steel working tray for medical staff.
- 304 grade steel tray with railing system
- 295 x 350 mm dimension
- Castors: 2 pcs lockable , 2 pcs without lock ,125 mm
- 360° swivel castors, made of non-marking material
- Defibrillator Holder: Stainless steel, rotatable, height adjustable. Assembled with security Velcro belt.
- 300 x 350 mm dimensions (L x W)
- Oxygen Tube Holder: Made by PP epoxy painted steel. Supplied security belt holder. 5 litres capacity
- Waste Bin: Detachable bin, made by PE material
- IV Hook: 4 hooks, IV pole, height adjustable

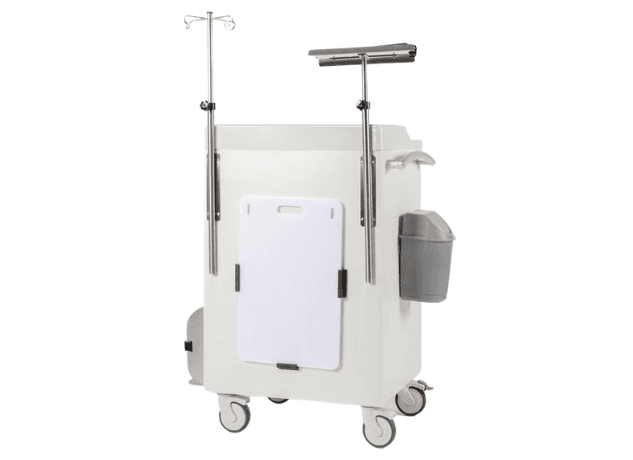

- Resuscitation Board: Located on the backside with holding from there ends
- High quality plexiglass material
- 395 x 600 mm dimension. 8 mm thickness
- Label Holder: Label holder on each drawer for easy identification
- Electric Crunch: (Optional)
| Body Dimension | 700 x 550 mm |
|---|---|
| External Dimension (with Accessories) | 980 x 700 mm |
| Height | 1250 mm |
| Castor Diameter | 125 mm |
