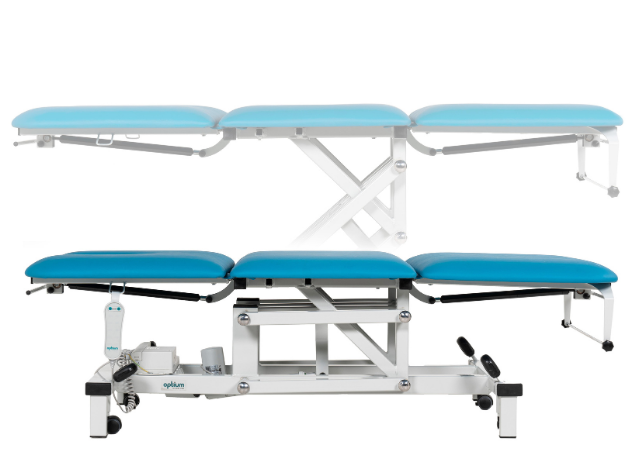

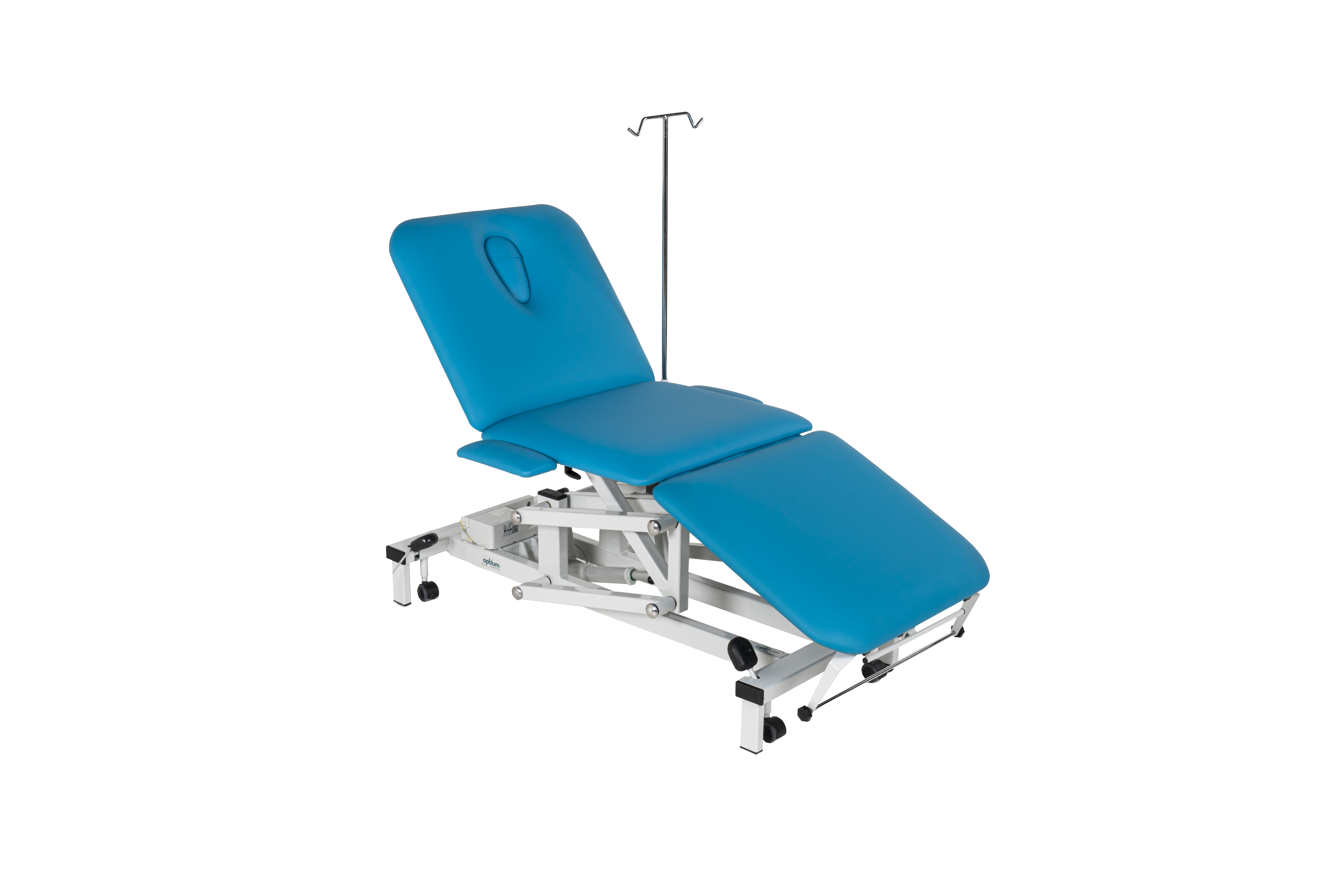

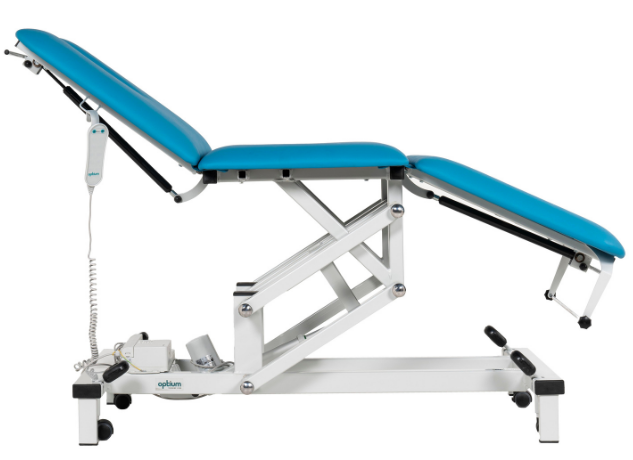

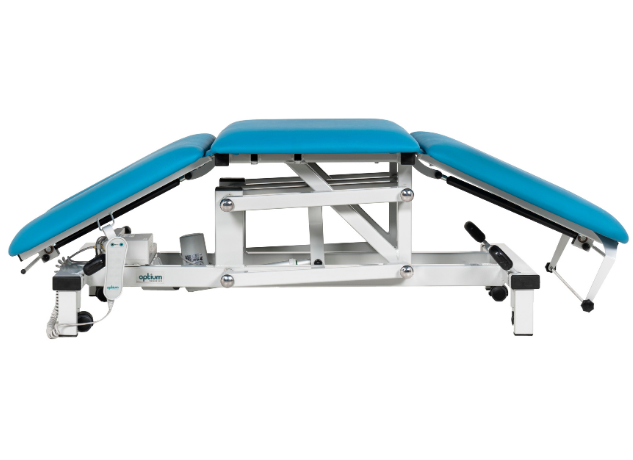

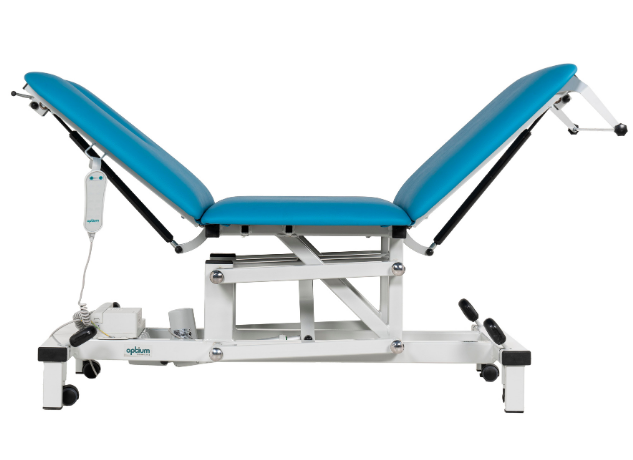

Examination Couch, Electrical Height Adjustment
EXAMINATION TABLESEXAMY 4
Examination Couch, Electrical Height Adjustment
- EXAMY 4 is designed for use in physical examination clinics, private clinics, ultrasound rooms, physiotherapy centers, and hospitals. With smooth electric movement, comfortable upholstery, and excellent stability, each element of the
- EXAMY 4 couch is crafted to enhance convenience for doctors. This versatile auscultation couch can adapt to various types of examinations, with multiple options and accessories available.
- Three sectional ergonomic design
- Easy to operate
- Backrest adjustment with gas spring
- Legrest adjustment by gas spring
- Electrical height adjustment
- Hydraulic height adjustment two sided foot pedals (optional)
- Hand remote control
- Foot control switch (optional)
- Retractable rolling system fixing floor on 4 rubber caps
- Epoxy painted steel frame
- High quality foam with synthetic leather coated
- 220 kg safe working load
- Foldable, chrome plated side rails (optional)
- Breathing space with plug (optional)
- Paper roll holder (optional)
- Battery Back-up (optional)
| Length | 1900 mm |
|---|---|
| Width | 700 mm |
| Height Range (electrical) | 500 – 880 mm |
| Height Range (hydraulic) | 500 – 950 mm |
| Castor Diameter | 50 mm |
| Backrest Angle | +85° / -30° |
| Legrest Angle | +85° / -30° |
| Backrest Dimension | 700 x 650 mm |
| Seat Dimension | 700 x 1250 mm |
| Total Lying Surface | 700 x 1900 mm |
| Safe Working Load | 220 kg |
