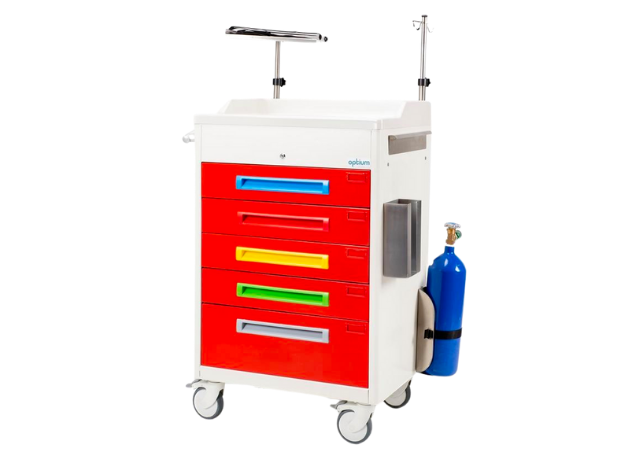

Emergency Trolley







MEDICAL CARTSUT 26
Emergency Trolley
Construction: Electrostatic powder painted metal frame and ABS
Body Material: Side walls and drawers electrostatic powered painted steel sheet
Working top and removable drawers trays ABS material

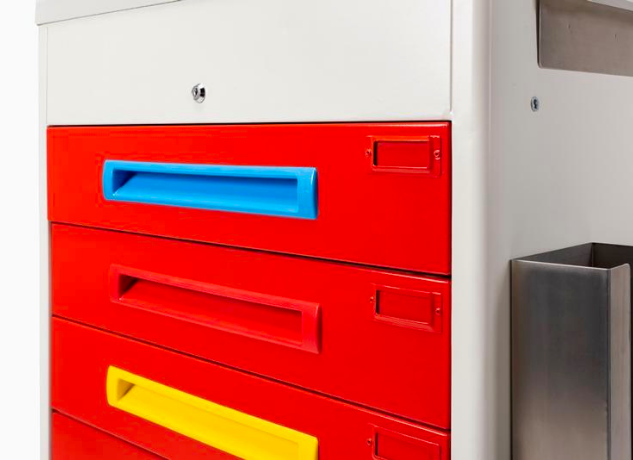

Knocking Mechanism: Central locking system with key
Optional: Breakaway seal system
Top Surface: ABS work top with raised edges on three sides to prevent falling
Drawers: 4 medium with 120 mm height + 1 big 220 mm height, total 5 drawers.
Optional: 2 medium with 120 mm height + 2 big 220 mm height, total 4 drawers.

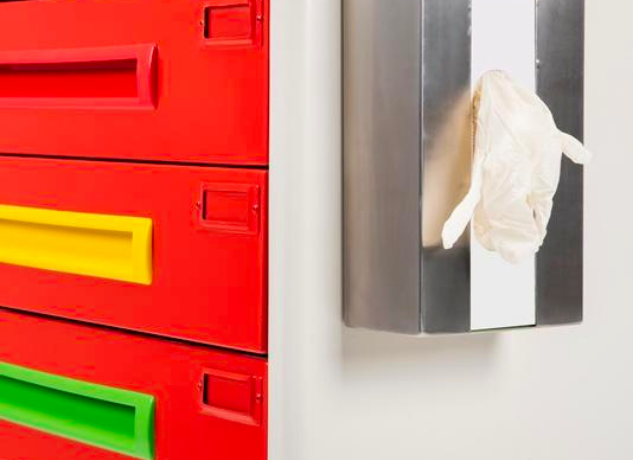

Built in drawer handles with different colours
Drawer Dimensions: 4 pcs medium drawers : 355 x 555 x 100 mm
1 pcs big drawer: 355 x 555 x 200 mm
Inner dimensions
Inside Drawers: Made by ABS material, easy detachable trays
Each drawer totally 2 separators for 4 compartments

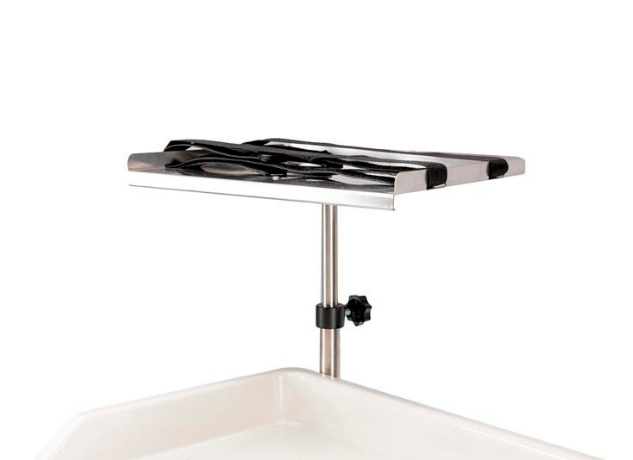

Pull-put Working Tray: High quality and rigid stainless steel working tray for medical staff.
304 grade steel tray with railing system
295 x 350 mm dimension
Castors: 2 pcs lockable , 2 pcs without lock ,125 mm
360° swivel castors, made of non-marking material
Defibrillator Holder: Stainless steel, rotatable, height adjustable. Assembled with security Velcro belt.
300 x 350 mm dimensions (L x W)
Oxygen Tube Holder: Made by PP epoxy painted steel. Supplied security belt holder. 5 litres capacity
Waste Bin: Detachable bin, made by PE material
IV Hook: 4 hooks, IV pole, height adjustable

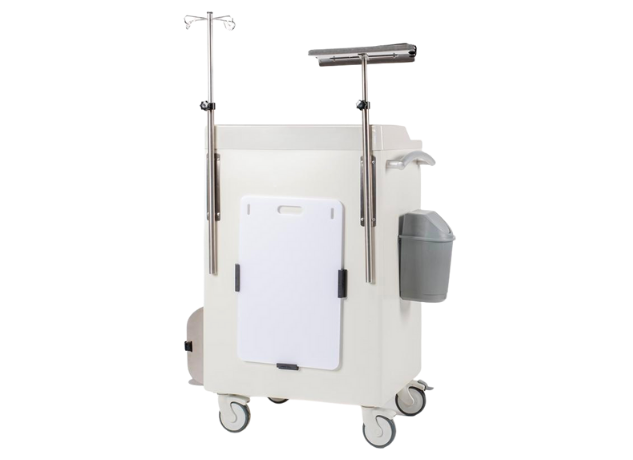

Resuscitation Board: Located on the backside with holding from there ends
High quality plexiglass material
395 x 600 mm dimension. 8 mm thickness
Label Holder: Label holder on each drawer for easy identification
Electric Crunch: (Optional)
