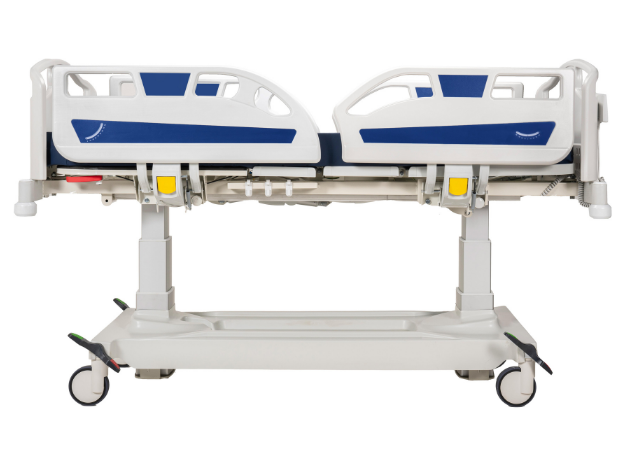

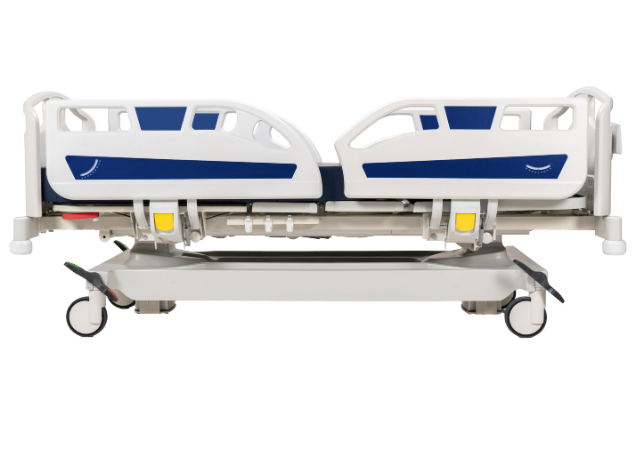

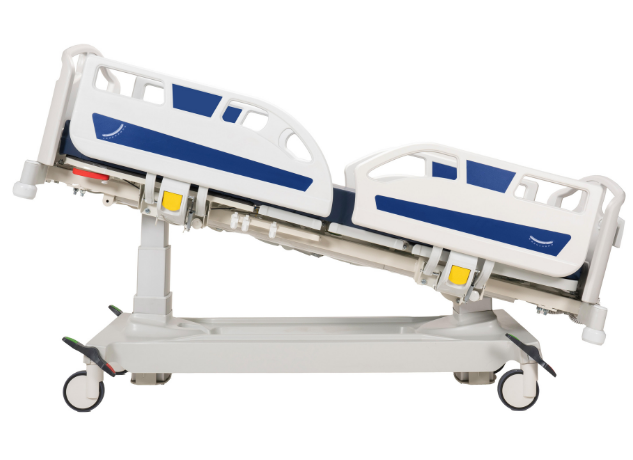

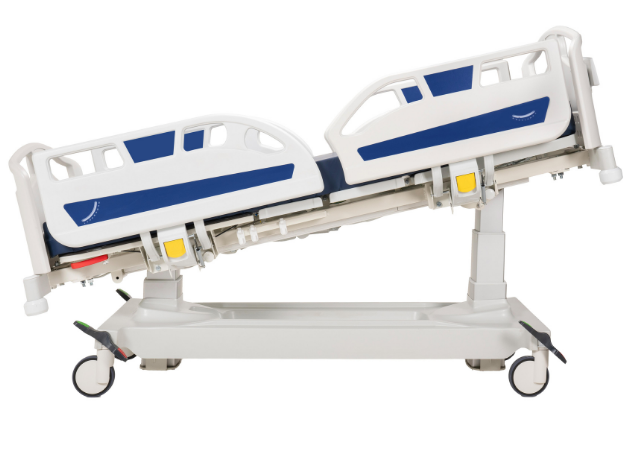

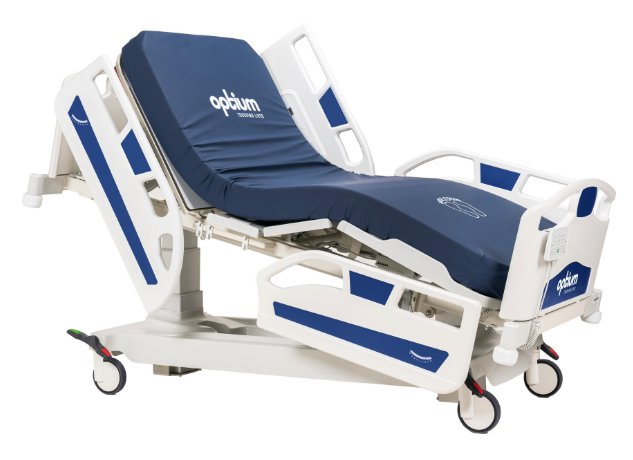

Electronic ICU Bed, Column Motors
.png&w=3840&q=75)
Infinitum SeriesIN 44
Electronic ICU Bed, Column Motors
- Linak brand Columnar Motors
- Electrical operated backrest, height and legrest adjustment
- Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
- Footrest adjustment by ratchet
- Remote control for adjusting positions
- Auto-CPR
- Auto Regression system on backrest
- Auto contour
- Hygienic design (PP), lockable and tuck away side rails
- Easy removable ABS mattress platform
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Height adjustable stainless steel IV pole
- Protective plastic crash bumpers on four corners
- Central Lockable Castors, 150 mm
- Angle indicator for backrest
- Angle indicator for Trendelenburg and reverse Trendelenburg positions
- Cardiac chair position
- Shock position
- Semi-Fowler position
- Bed exit position
- Examination position
- CPR activation with single button
- Foot end nurse control panel
- Urine bag holder
- Activation key at remote control to prevent any undesired positions
- Dual sided manual CPR levers at backrest (optional)
- X-ray translucent HPL backrest with X-ray cassette holder (optional)
- Rechargeable Battery Backup (optional)
- Integrated Linak brand weight scale system (optional)
- Bed size extension (optional)
- IPX6 standard electronic system
| Overall Length | 216 cm |
|---|---|
| Overall Width | 102 cm |
| Height Range | 44-84 cm |
| Trendelenburg | 0°-16° |
| Reverse Trendelenburg | 0°-16° |
| Backrest Angle | 0°-70° |
| Legrest Angle | 0°-35° |
| Castor Diameter | 15 cm |
| Under Bed Clearance | 15 cm |
| Safe Working Load | 250 kg |
