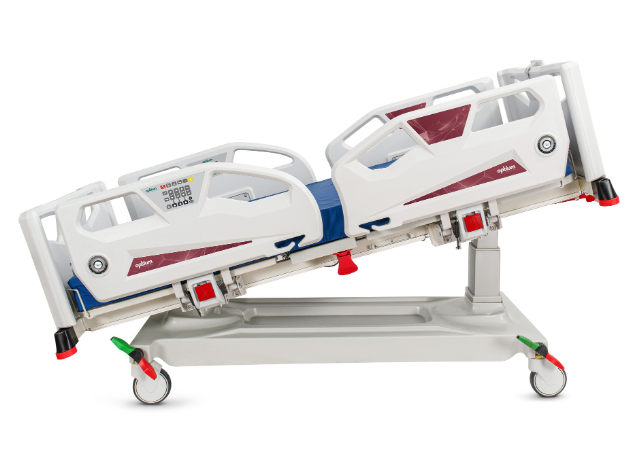

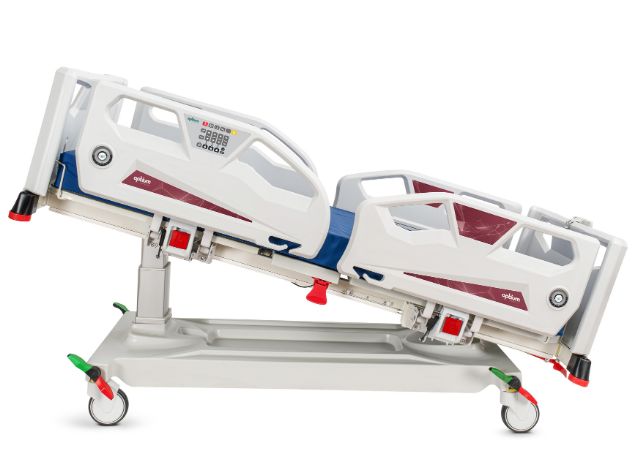

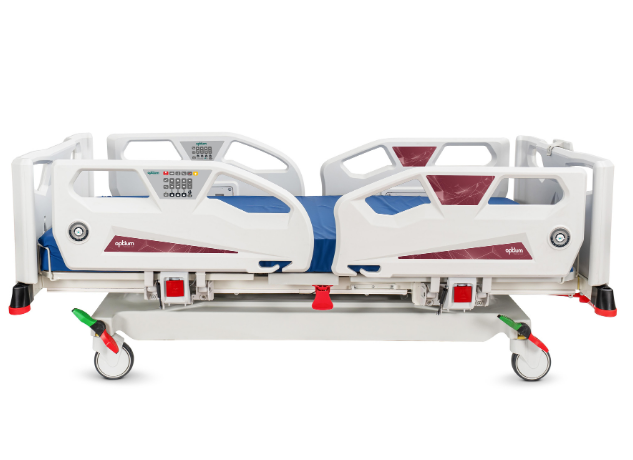

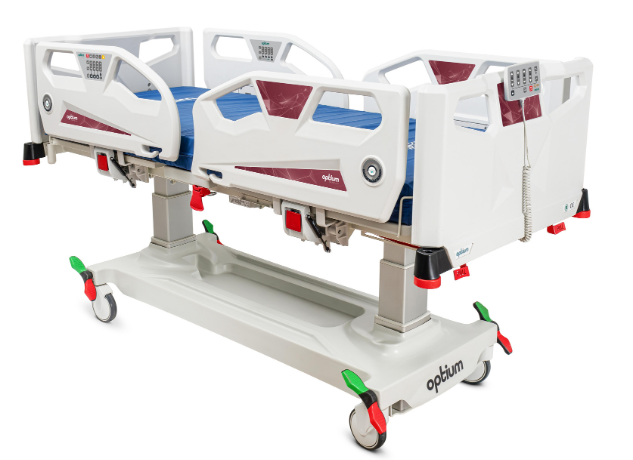

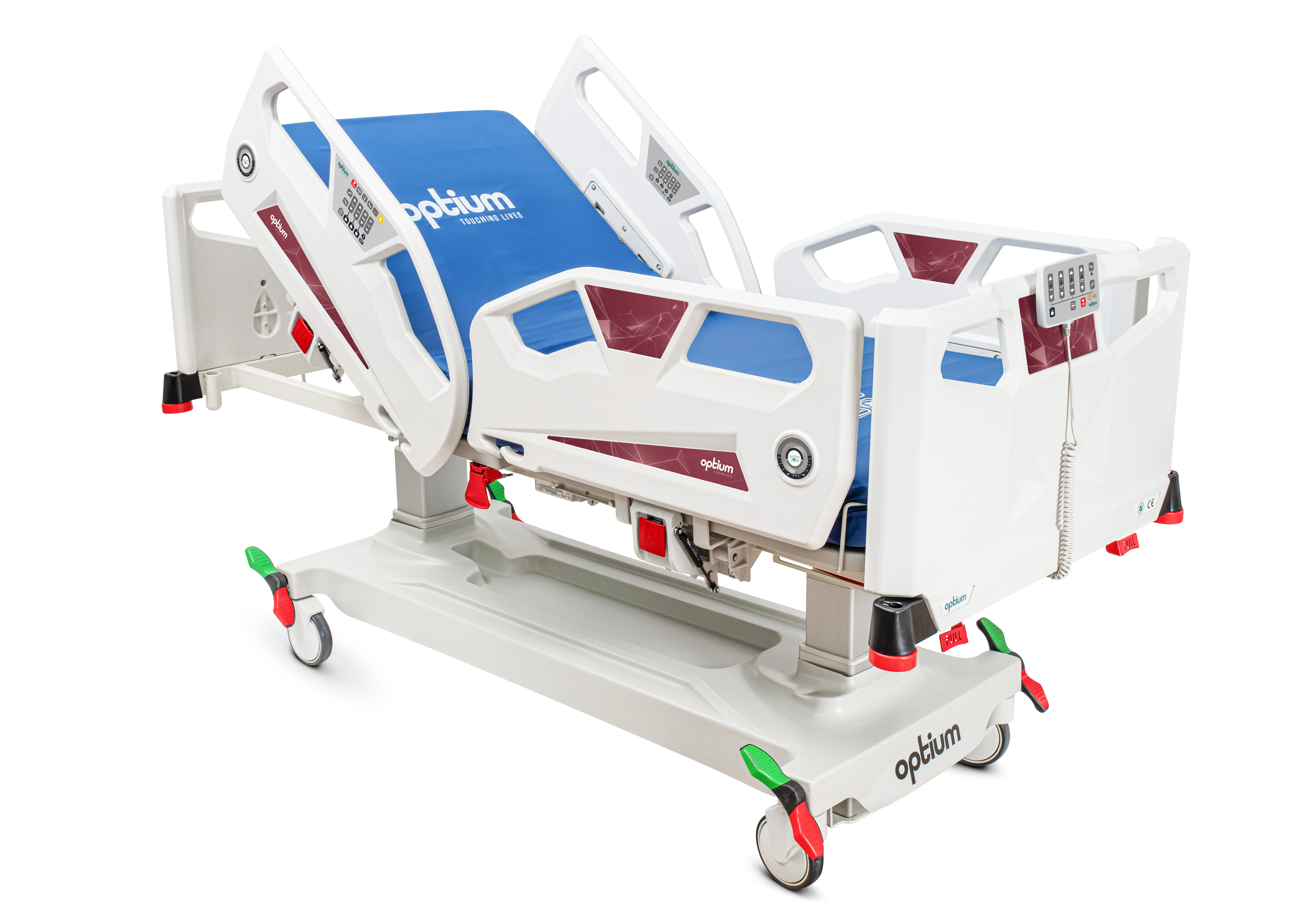

Electronic ICU Bed, Column Motors
Collesium SeriesCL 45
Electronic ICU Bed, Column Motors
- Columnar Motors
- Electrical operated backrest, height and legrest adjustment
- Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
- Footrest adjustment by ratchet
- Remote control for adjusting positions
- Auto-CPR
- Auto Regression system on backrest
- Auto contour
- Hygienic design (PP), lockable and tuck away side rails
- Easy removable ABS mattress platform
- X-ray translucent HPL backrest
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Height adjustable stainless steel IV pole
- Plastic crash bumpers
- Central Lockable Castors, 150 mm
- Angle indicator for backrest
- Angle indicator for Trendelenburg and reverse Trendelenburg positions
- Cardiac chair position
- Shock position
- Semi-Fowler position
- Bed exit position
- Examination position
- CPR activation with single button
- Foot end nurse control panel
- Control panels embedded on side rails; 2 for patient; 2 for nursing staff
- Activation key at remote control to prevent any undesired positions
- Dual sided manual CPR levers at backrest
- Rechargeable Battery Backup
- X-ray cassette holder
- Urine bag holder
- Integrated weight scale system (Optional)
- Bed size extension (optional)
- IPX6 standard electronic system
| Overall Length: | 220 cm |
|---|---|
| Overall Width: | 99 cm |
| Mattress Surface: | 85 x 200 cm |
| Height: | 45-85 cm |
| Trendelenburg: | 0°-17° |
| Reverse Trendelenburg: | 0°-17° |
| Backrest Angle: | 0°-70° |
| Legrest Angle: | 0°-40° |
| Castor Diameter: | 15 cm |
| Under bed Clearance: | 15 cm |
| Safe Working Load: | 250 kg |
