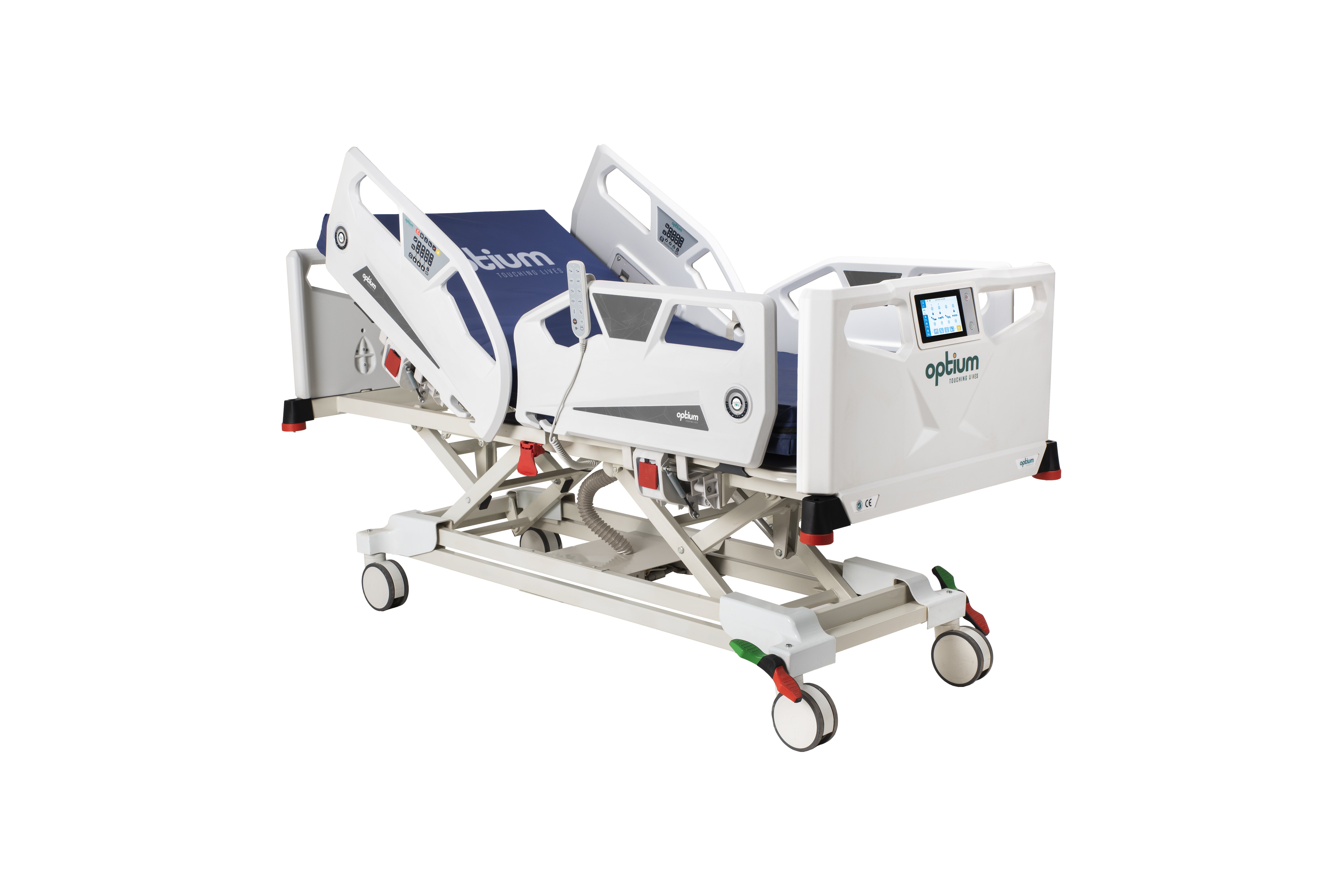

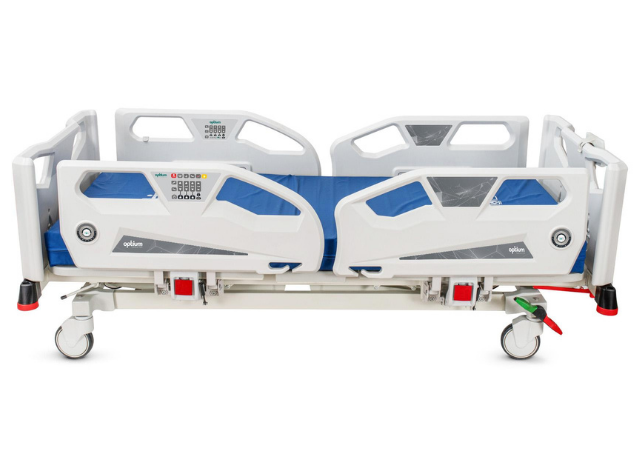

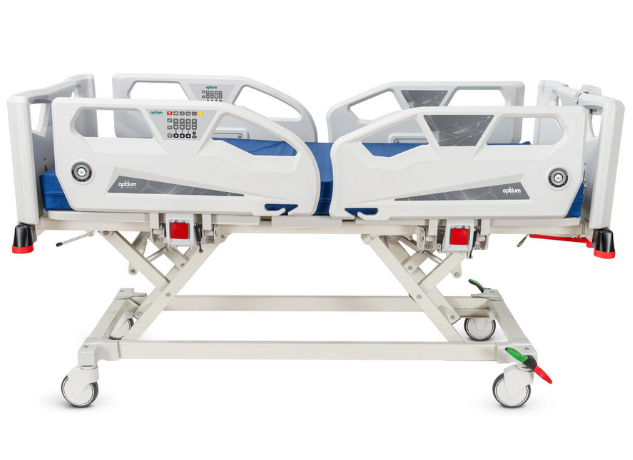

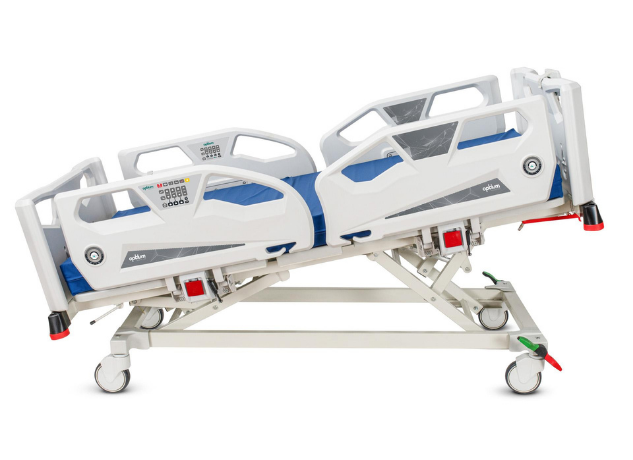

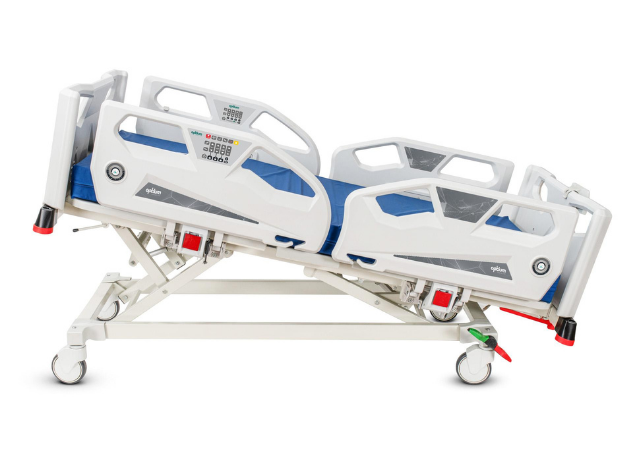

Electronic ICU Bed, 4 Motors
Collesium SeriesCL 43
Electronic ICU Bed, 4 Motors
- Electrical operated backrest, height and legrest adjustment
- Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
- Foot end nurse control unit
- Control panels embedded on side rails; 2 for patient; 2 for nursing staff
- Footrest adjustment by ratchet
- Auto-CPR
- Auto Regression system on backrest
- Auto contour
- Hygienic design (PP), lockable and tuck away side rails
- Easy removable ABS mattress platform
- X-ray cassette holder
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Height adjustable stainless steel IV pole
- Plastic protective crash bumpers on four corners
- Central Lockable Castors, 150 mm
- Angle indicator for backrest
- Angle indicator for Trendelenburg and Reverse Trendelenburg positions
- Cardiac chair position with single button
- Shock position with single button
- Semi-Fowler position with single button
- Bed exit position with single button
- Examination position with single button
- Electronic CPR with one touch button
- Activation key at remote control to prevent any undesired positions
- Dual sided manual CPR levers at backrest
- Urine bag holder
- Rechargeable Battery Backup
- X-ray cassette holder at backrest
- IPX6 standard electronic system
| Overall Length: | 220 cm |
|---|---|
| Overall Width: | 99 cm |
| Mattress Surface: | 85 x 200 cm |
| Height: | 37-88 cm |
| Trendelenburg: | 0°-20° |
| Reverse Trendelenburg: | 0°-20° |
| Backrest Angle: | 0°-70° |
| Legrest Angle: | 0°-42° |
| Footrest Angle: | 0°-34° |
| Castor Diameter: | 15 cm |
| Under bed Clearance: | 15 cm |
| Safe Working Load: | 250 kg |
