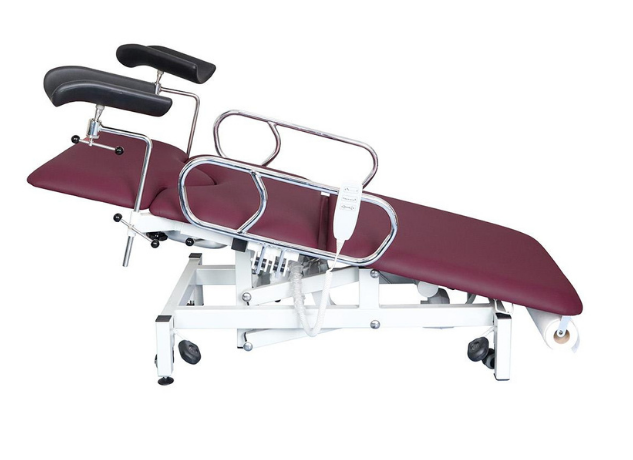

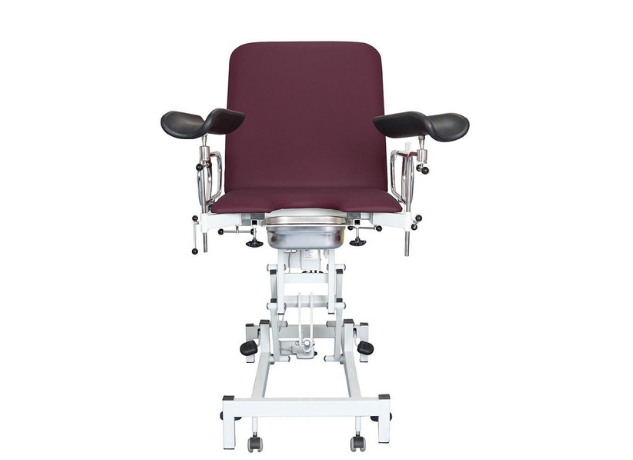

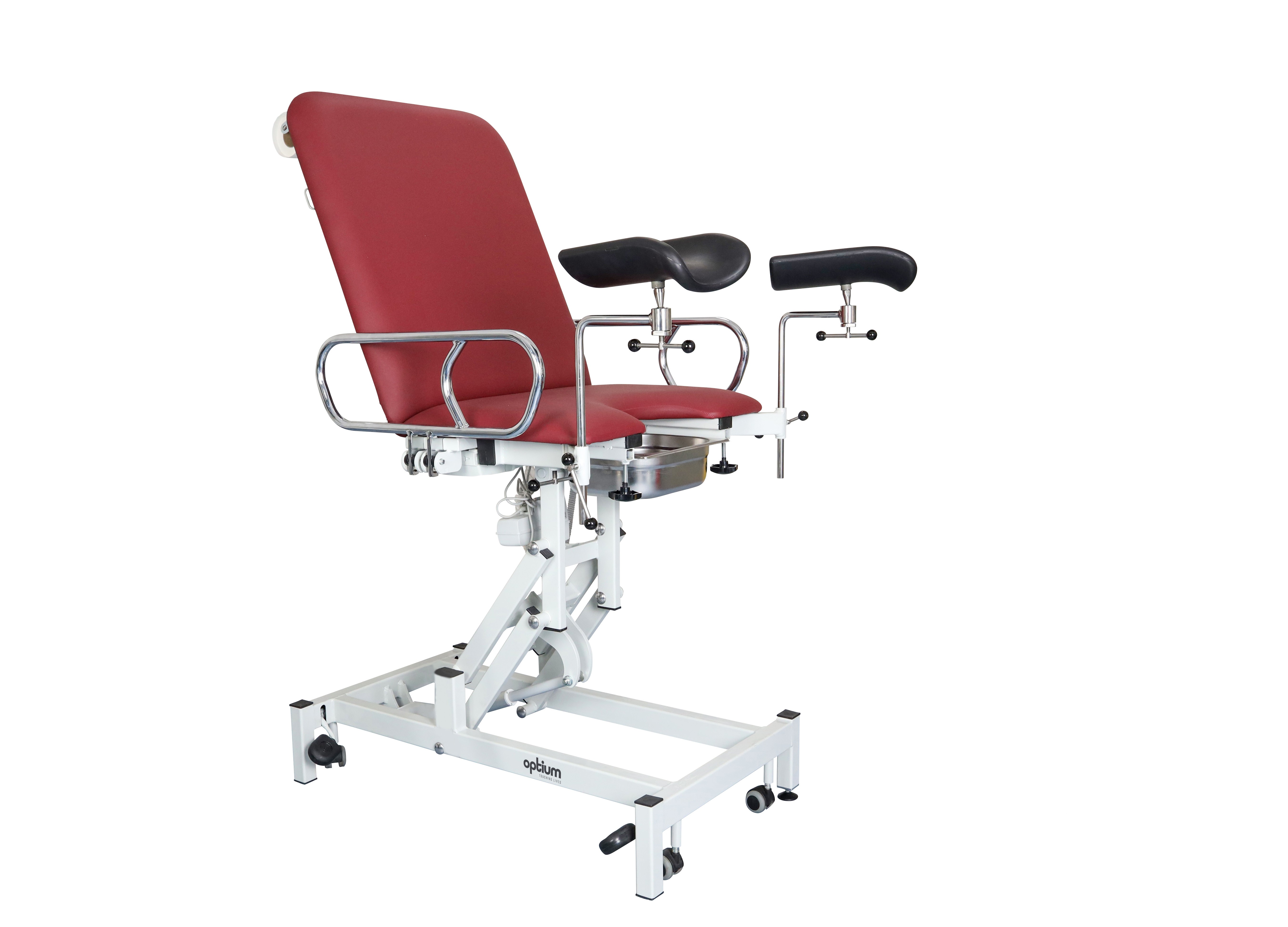

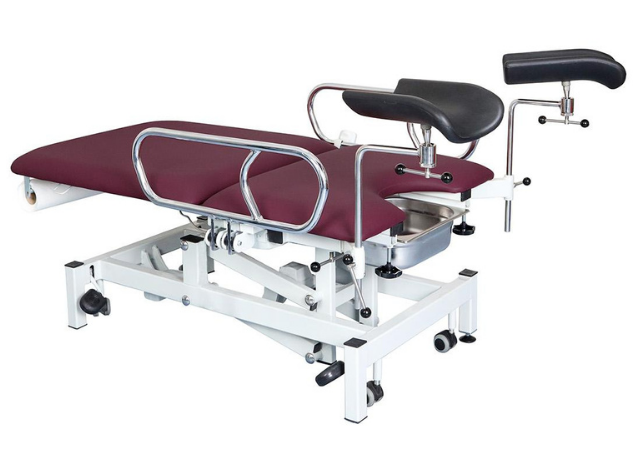

Electronic Gynecology Couch
DELIVERY BEDS & GYNECOLOGY TABLESMATERNEUM
Electronic Gynecology Couch
- Three motors

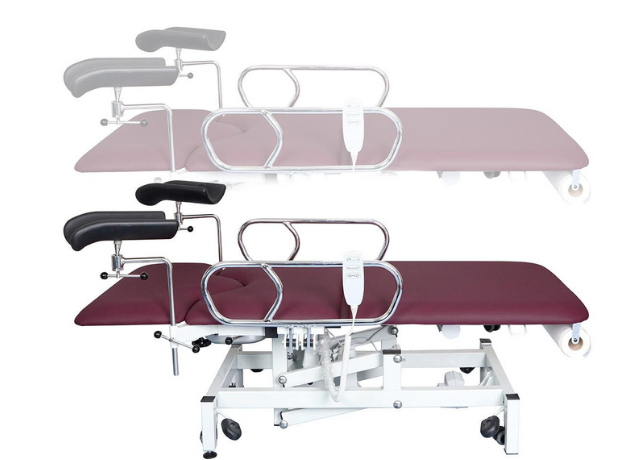

- Electrical backrest, height, and Trendelenburg/Reverse Trendelenburg adjustments
- Electric adjustment system with remote control
- Three sectional ergonomic design
- Consist of back section, pelvis and thighs section
- Electrostatic powder-coated metal frame
- Anti-microbial, waterproof, flame-retardant, and easy-to-clean upholstery
- Stainless steel accessory rails
- Stainless steel fold-down side rails with patient handles
- Easy removable stainless steel fluid basin
- Paper roll support
- Adjustable and lockable polyurethane leg supports with straps
- 4 castors with retractable rolling system brakes fixing floor on 4 rubber caps
- Backrest with gas spring (optional)
- Hydraulic height adjustment (optional)
- Grip handles (optional)
- Footrest (optional)
- Rechargeable battery backup system (optional)
- Foot switch (optional)
- Two-motor version (optional)
| External Length | 1650 mm |
|---|---|
| External Width | 800 mm |
| Total Lying Surface | 700 x 1650 mm |
| Height Range (electrical) | 525-960 mm |
| Height Range (hydraulic) | 485-905 mm |
| Backrest Angle (electrical) | 0°-85° |
| Backrest Angle (gas spring) | 0°-80° |
| Trendelenburg Angle | 0°-16° |
| Reverse Trendelenburg Angle | 0°-4° |
| Upholstery Thickness | 50 mm |
| Castor Diameter | 50 mm |
| Safe Working Load | 250 kg |
