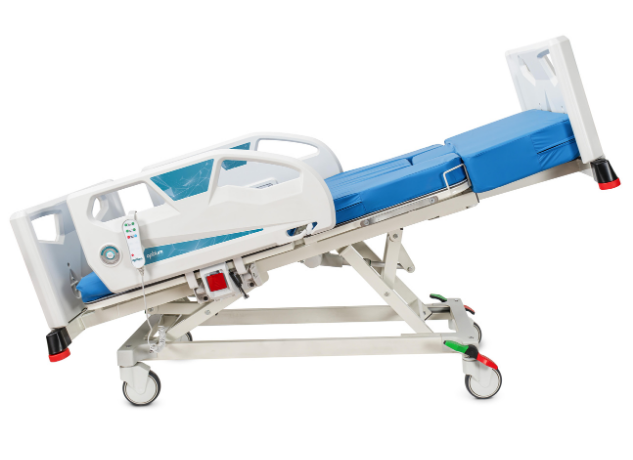

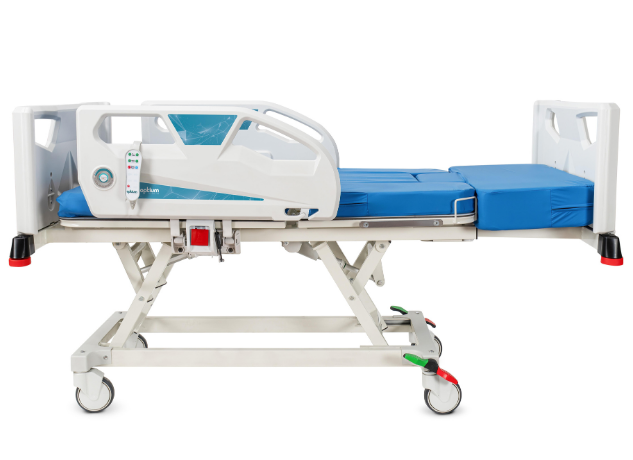

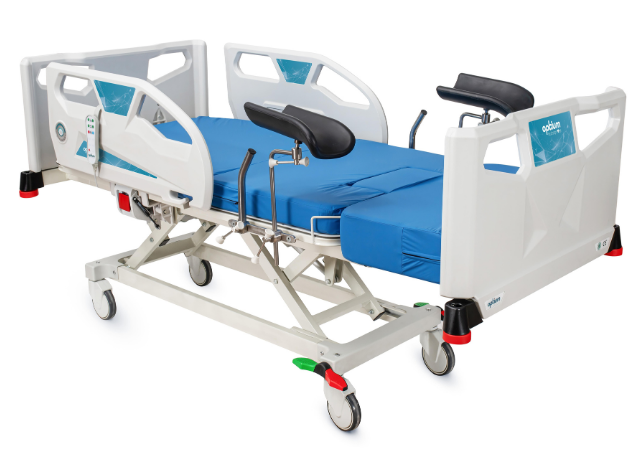

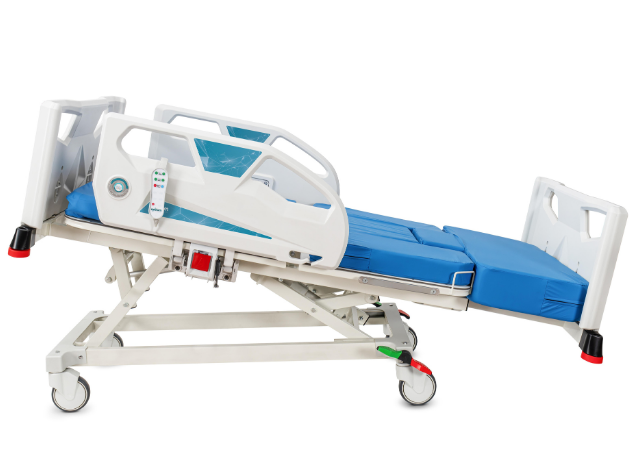

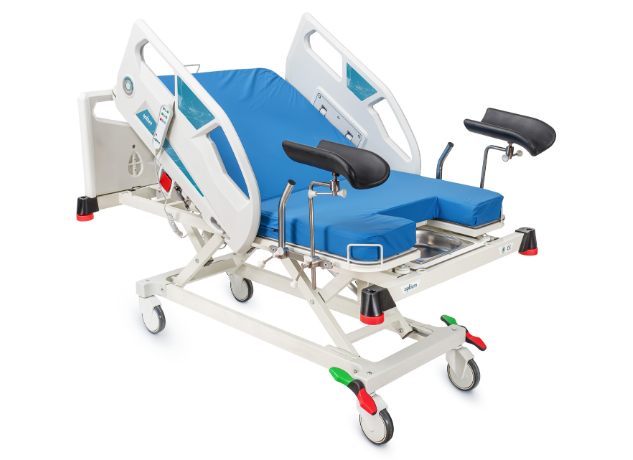

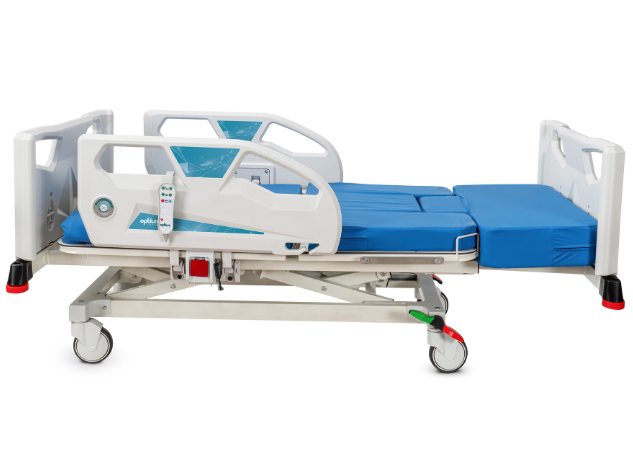

Electronic Delivery Bed, 3 Motors
DELIVERY BEDS & GYNECOLOGY TABLESDB 34
Electronic Delivery Bed, 3 Motors
- Electronic adjustments of backrest, height-up & down positions
- Electrical operated Trendelenburg and Reverse Trendelenburg positions.
- Metal parts coated electrostatic epoxy-polyester powder
- Easily cleanable, 3-section (HPL) compact laminate mattress surface.
- X-Ray permeable lying surface
- Converting to Bed
- Removable headboard and footboard made of hygienic PP materials.
- Tuck-away side rails made of hygienic PP materials
- IV pole receptacles and on the two corners of the headboard
- Rotating protective bumpers at all (four) corners of the bed
- Height adjustable IV pole
- Pair drainage hooks at both sides of the bed.
- Stainless steel accessory rails
- 150 mm diameter swivel castors with central locking system and directional lock
- Hand control unit
- Equipped with scissor mechanism enhancing stability
- Two-piece ABS plastic covered lower chassis
- Stainless steel accessories corrosion resistant
- Easily removable stainless steel waste bowl
- Adjustable patient hand grips
- Sliding foot section mechanism
- Angle indicators on the side rails for the backrest, Trendelenburg and Reverse Trendelenburg positions.
- Foam mattress of 10 cm thickness and 28 kg/m3 suitable for lying surface with antibacterial & flame retardant cover
- Adjustable Leg supports
- Manual CPR for the backrest (optional)
- Accessory Trolley (optional)
- Control panels embedded on side rails (optional)
- Twin castors of 150 mm diameter (optional)
- Foot switch (optional)
- Nurse control panel (optional)
- Electronically CPR (Reset) (optional)
- Back up battery for non-stop operation in case of power failure. (optional)
| Backrest Angle | 0°-72° |
|---|---|
| Trendelenburg Angle | 0°-17° |
| Reverse Trendelenburg Angle | 0°-17° |
| External Dimensions (Extended) | 100 x 219 cm |
| External Dimensions (Retracted) | 100 x 179 cm |
| Bed Surface (Extended) | 85 x 195 cm |
| Height (without Mattress) | 51-84 cm |
| Mattress Thickness (Backrest and Pelvic Sections) | 12 cm |
| Castor Diameter | 150 mm |
| Safe Working Load | 250 kg |
